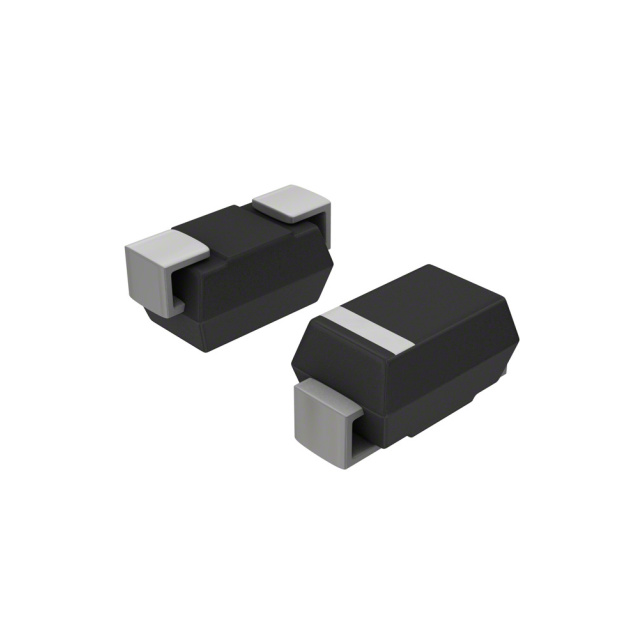

UFS140JE3/TR13
ActiveMicrochip Technology
DIODE GEN PURP 400V 1A DO214BA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UFS140JE3/TR13
ActiveMicrochip Technology
DIODE GEN PURP 400V 1A DO214BA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UFS140JE3/TR13 |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | DO-214BA |
| Reverse Recovery Time (trr) | 50 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-214BA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.76 | |
UFS140 Series
DIODE GEN PURP 400V 1A DO214BA
| Part | Reverse Recovery Time (trr) | Supplier Device Package | Current - Reverse Leakage @ Vr | Package / Case | Speed | Technology | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) [Max] | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UFS140JE3/TR13 | 50 ns | DO-214BA | 10 µA | DO-214BA | 200 mA, 500 ns | Standard | 1 A | 400 V | 1.1 V | Surface Mount | 175 ░C | -55 C |
Description
General part information
UFS140 Series
Diode 400 V 1A Surface Mount DO-214BA
