962982-1

Active

TE Connectivity AMP Connectors

CONTACT SOCKET 14-16AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONTACT SOCKET 14-16AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

CONTACT SOCKET 14-16AWG CRIMP

Part	Features	Contact Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Size	Contact Material	Contact Finish	Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Termination Finish
TE Connectivity AMP Connectors 962982-1	Insulation Support	Socket	14 AWG	16 AWG	39.4 Áin	1 Ám	Crimp	2.5 mm	Copper Alloy	Tin	Power, Stamped	1 mm˛	2.5 mm˛	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

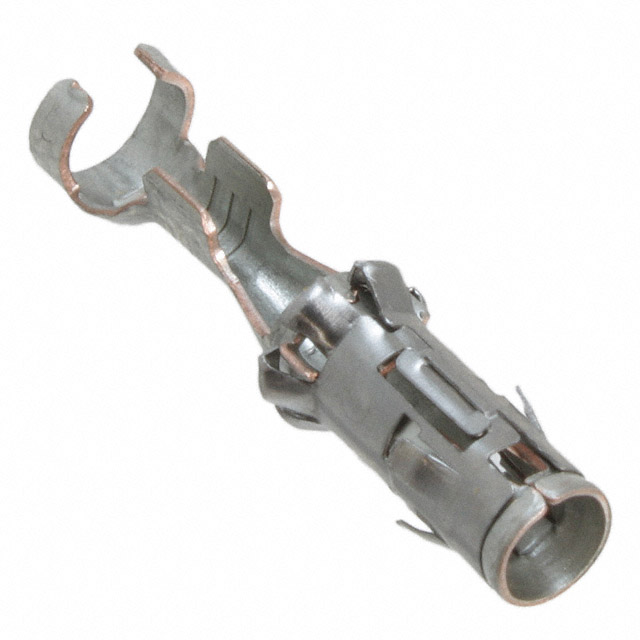

Socket Contact 14-16 AWG Size 2.5mm Crimp Tin

Technical documentation and resources
