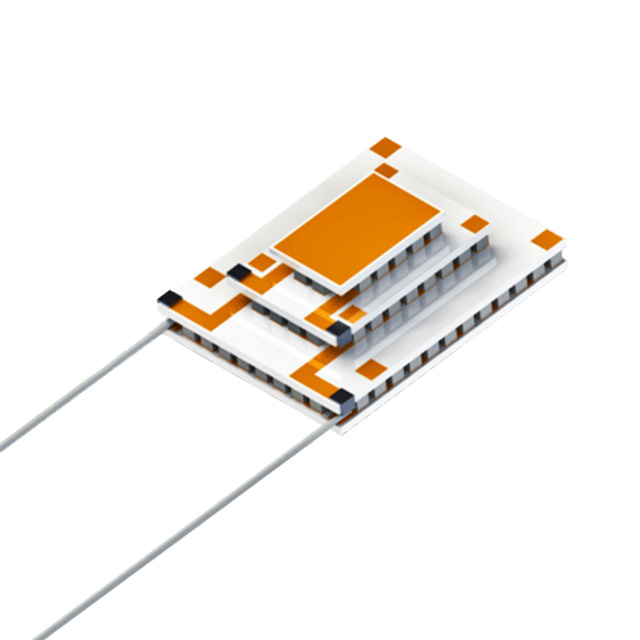

NL3040-01BC

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X10.8MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X10.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL3040-01BC

Delta Tmax @ Th	98 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	10.8 mm
Number of Stages	3
Qmax @ Th	5.6 W
Resistance	1.57 Ohms
Size / Dimension [x]	28.27 mm
Size / Dimension [y]	21.72 mm
Voltage - Max [Max]	7.3 V

Part	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Resistance	Voltage - Max [Max]	Height [z]	Delta Tmax @ Th	Features
Marlow Industries, Inc. NL3040-01BC	5.6 W	28.27 mm	21.72 mm	3	1.57 Ohms	7.3 V	10.8 mm	98 °C	Exterior Metallization (Both Sides) Lead Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	4	$ 643.41

General part information

Peltier Module 5.6W @ 27°C 4.5 A 85°C
