FFR.1S.408.CLAE61

Active

LEMO

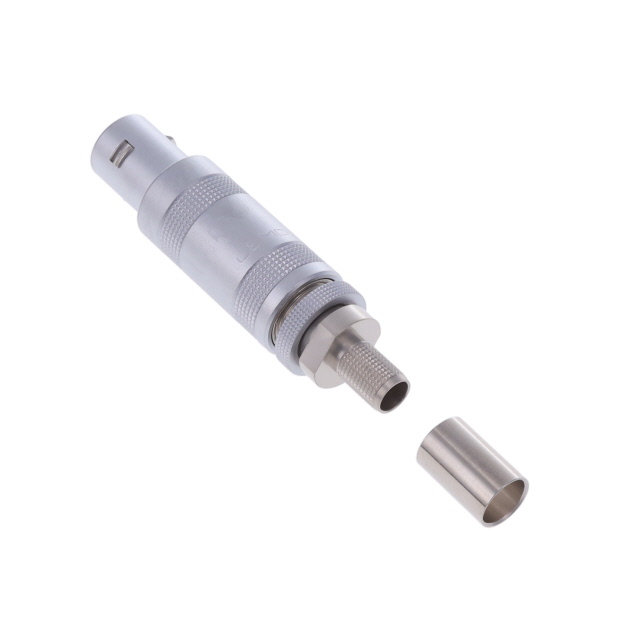

CONN PLUG MALE 1P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFR.1S.408.CLAE61	FFR.1S Series

Accessory Type	-	Crimp Ferrule
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.157 - 0.181 in
Cable Opening	-	4 - 4.6 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	6 A	6 A
Fastening Type	Push-Pull	Push-Pull
For Use With/Related Products	-	1S Series Connector
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	1	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shielding	Shielded	Shielded

CONN PLUG MALE 1P GOLD SLDR CUP

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Cable Opening [x]	Cable Opening [x]	Primary Material	Shielding	Mounting Type	Current Rating (Amps)	Color	Insert Material	Contact Material	Number of Positions	Fastening Type	Ingress Protection	Connector Type	Contact Finish - Mating	Backshell Material, Plating	Shell Finish	Shell Material	Accessory Type	For Use With/Related Products
LEMO FFR.1S.408.CLAE46	Keyed	-55 °C	250 °C	UL94 V-0	0.157 in, 0.181 in	4 mm, 4.6 mm	Metal	Shielded	Free Hanging (In-Line)	6 A	Silver	Polyetheretherketone (PEEK)	Brass	1	Push-Pull	IP50	Male Pins, Plug	Gold	Brass, Chrome	Chrome	Brass
LEMO FFR.1S.160.MN																						Crimp Ferrule	1S Series Connector
LEMO FFR.1S.408.CLAE61	Keyed	-55 °C	250 °C	UL94 V-0			Metal	Shielded	Free Hanging (In-Line)	6 A	Silver	Polyetheretherketone (PEEK)	Brass	1	Push-Pull	IP50	Male Pins, Plug	Gold	Brass, Chrome	Chrome	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Plug, Male Pins Solder Cup
