PT00A-8-2S
ActiveAmphenol Industrial Operations

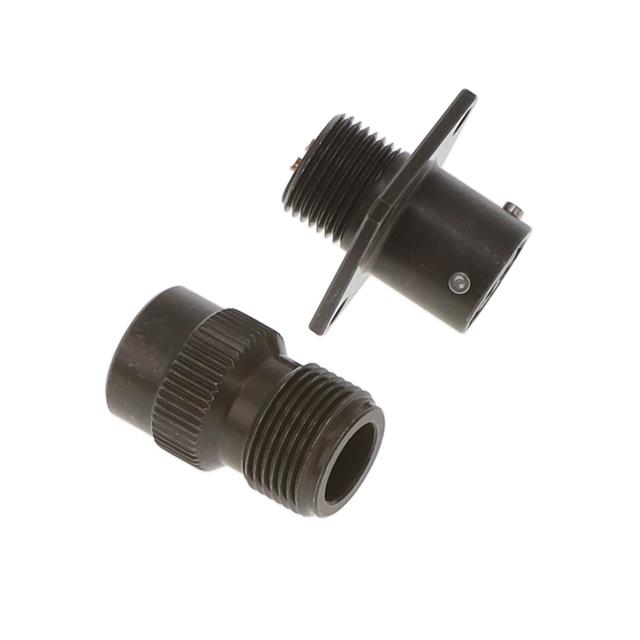

CONN RCPT FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT00A-8-2S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT00A-8-2S | PT00A Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Communication Systems, Industrial, Mass Transit, Aerospace, Instrumentation, Military |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Black Zinc Cobalt |
| Cable Opening | - | 3.18 - 9.52 mm |
| Cable Opening | - | 0.125 - 0.375 in |
| Color | Olive Drab | Olive Drab, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell, Strain Relief, Cable Clamp |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 2 | 2 - 21 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, X, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Black Zinc Cobalt |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-2 | 12-3, 12-8, 8-4, 12-4, 14-5, 8-2, 8-3, 10-6, 14-12 |
| Shell Size - Insert | - | 21 - 98 |
| Shell Size - Insert | - | 12 - 22 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.50 | |
| 10 | $ 30.17 | |||
| 25 | $ 28.28 | |||
| 50 | $ 26.93 | |||
| 100 | $ 25.65 | |||
| 250 | $ 24.05 | |||
PT00A Series
PT 3C 3#16 SKT RECP
| Part | Features | Backshell Material, Plating | Shell Finish | Orientation | Shell Material | Primary Material | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Mounting Feature | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] | Shell Size - Insert | Fastening Type | Color | Contact Material | Shielding | Applications | Qualification | Connector Type | Number of Positions | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT00A12-3S-SR | Backshell, Cable Clamp, Strain Relief | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 1000 VAC | 7.92 mm | 0.312 in | 12-3 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | MIL-DTL-26482 Series I | Receptacle, Female Sockets | |||||
Amphenol Industrial Operations PT00A-12-8PX | Backshell | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | X | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 12-8 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Male Pins, Receptacle | 8 | |||||||
Amphenol Industrial Operations PT00A-8-4P | Backshell | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 8-4 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Male Pins, Receptacle | 4 | |||||||
Amphenol Industrial Operations PT00A-12-4PW | Backshell | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | W | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 12-4 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Male Pins, Receptacle | 4 | |||||||
Amphenol Industrial Operations PT00A14-5PW-027 | Backshell | Aluminum, Black Zinc Cobalt | Black Zinc Cobalt | W | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 14-5 | Bayonet Lock | Black | Copper Alloy | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | MIL-DTL-26482 Series I | Male Pins, Receptacle | ||||||||
Amphenol Industrial Operations PT00A-8-2S | Backshell | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 8-2 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Receptacle, Female Sockets | 2 | |||||||
Amphenol Industrial Operations PT00A8-3P-SR | Backshell, Cable Clamp, Strain Relief | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 600 VAC | 3.18 mm | 0.125 in | 8-3 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | MIL-DTL-26482 Series I | Male Pins, Receptacle | |||||
Amphenol Industrial Operations PT00A14-5P-SR | Backshell, Cable Clamp, Strain Relief | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | 9.52 mm | 0.375 in | 14-5 | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | MIL-DTL-26482 Series I | Male Pins, Receptacle | ||||||
Amphenol Industrial Operations PT00A-22-21S | Backshell | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Receptacle, Female Sockets | 21 | 21 | 22 | ||||||
Amphenol Industrial Operations PT00A12-98P | Backshell | Aluminum, Olive Drab Cadmium | Olive Drab Chromate over Cadmium | N | Aluminum | Metal | Gold | -55 °C | 125 °C | Neoprene | Flange | Bayonet Lock | Olive Drab | Copper Alloy | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | MIL-DTL-26482 Series I | Male Pins, Receptacle | 10 | 98 | 12 |
Description
General part information
PT00A Series
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
