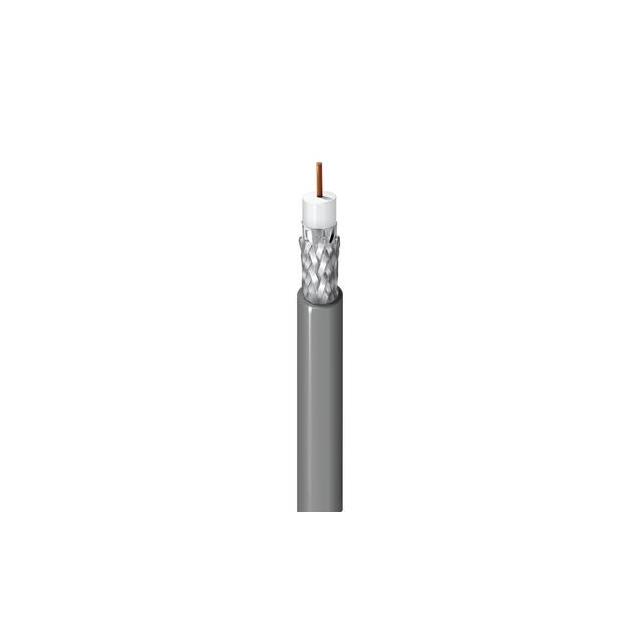

734A1P 008500

Active

Belden Inc.

#20 FFEP SH FLRST

Search across all available documentation for this part.

Active

Belden Inc.

#20 FFEP SH FLRST

Technical Specifications

Parameters and characteristics for this part

Specification	734A1P 008500

Cable Group	RG-59
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.75 mm
Dielectric Diameter [diameter]	0.148 in
Dielectric Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Diameter	0.213 in
Jacket (Insulation) Diameter	5.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Shield Coverage	100 %, 85 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Datacom
VoP, Velocity of Propagation	80
Wire Gauge	20 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Jacket (Insulation) Material	VoP, Velocity of Propagation	Cable Type	Length	Length	Conductor Material	Shield Material	Cable Group	Wire Gauge	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Jacket Color	Shield Type	Conductor Strand	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Usage
Belden Inc. 734A1P 008500	75 ░C	0 °C	Fluorinated Ethylene-Propylene (FEP)	Poly-Vinyl Chloride (PVC)	80	Coaxial - Plenum	152.4 m	6000 in	Copper Bare	Aluminum Polyester Copper Tinned	RG-59	20 AWG	0.213 in	5.4 mm	Gray	Braid Foil	Solid	3.75 mm	0.148 in	85 % 100 %	Datacom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 20 AWG RG-59 500.0' (152.40m)
