Specification	32497

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.125 in
Insulation Diameter (Min)	0.08 in
Length - Overall	0.83 in
Length - Ring Center to Termination	0.25 in
Length - Termination	0.404 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening	0.171 in
Width - Outer Edges	0.416 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

3249 Series

Part	Insulation	Terminal Type	Features	Contact Finish	Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Mounting Type	Width - Outer Edges	Stud/Tab Size	Contact Material	Length - Overall	Length - Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Tongue Inside Opening	Length - Ring Center to Termination	Number of Wire Entries	Thickness
TE Connectivity AMP Connectors 32498	Insulated	Flanged	Serrated Termination	Tin	Crimp	16 AWG	22 AWG	Red	Free Hanging (In-Line)	0.416 in	8 Stud	Copper	0.83 in	0.404 in	0.105 in	0.14 in	Nylon PA Polyamide	0.171 in	0.25 in
TE Connectivity AMP Connectors 32497	Insulated	Flanged	Serrated Termination	Tin	Crimp	16 AWG	22 AWG	Red	Free Hanging (In-Line)	0.416 in	8 Stud	Copper	0.83 in	0.404 in	0.08 in	0.125 in	Nylon PA Polyamide	0.171 in	0.25 in
TE Connectivity AMP Connectors 324988	Fully Insulated	Butt Splice Individual Openings Inline	Serrated Mating Area		Crimp	18 AWG	22 AWG	Natural												2

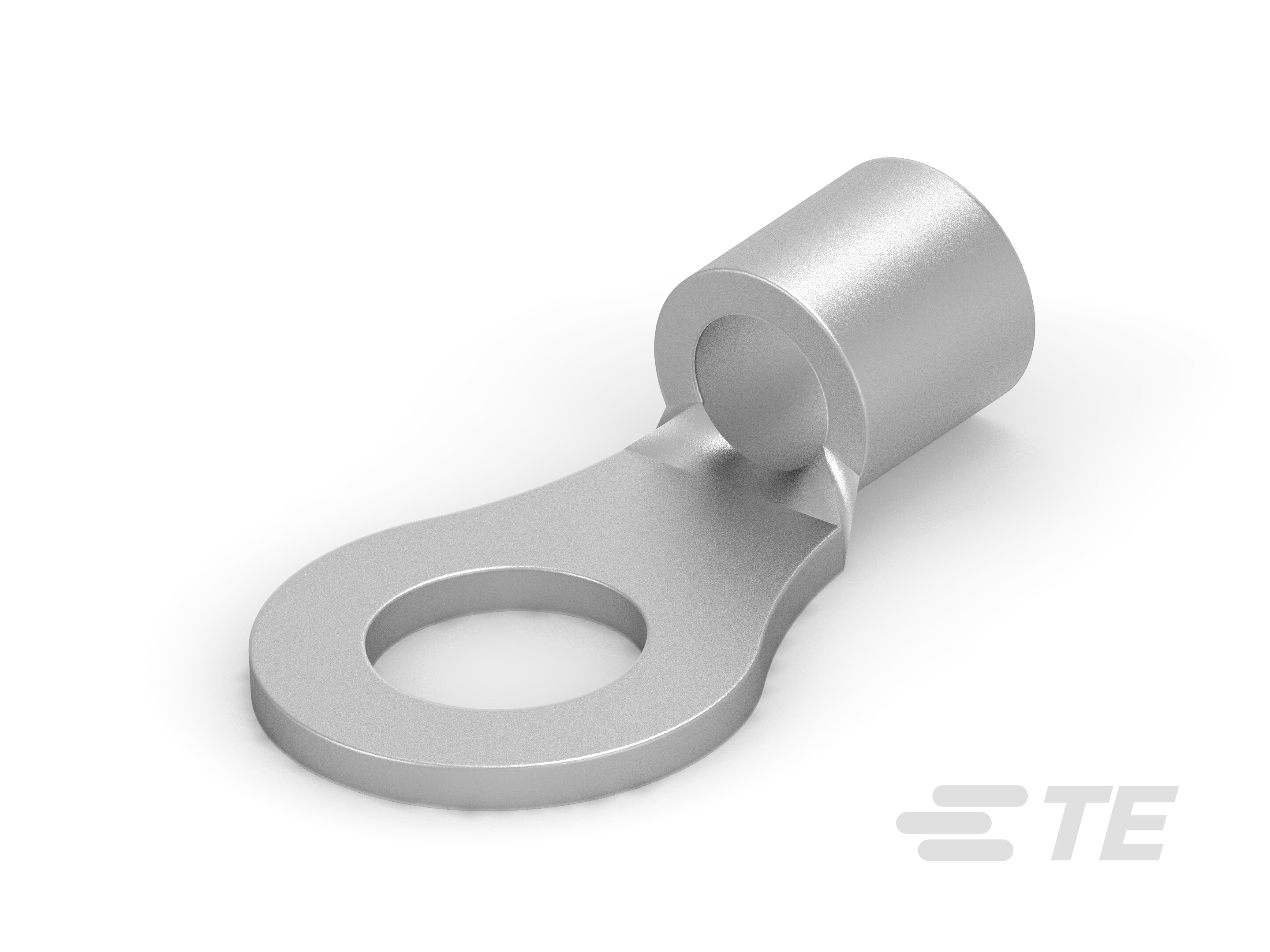

TE Connectivity AMP Connectors 324955	Non-Insulated	Circular	Brazed Seam Serrated Termination	Tin	Crimp	14 AWG	16 AWG		Free Hanging (In-Line)	0.312 in	8 Stud	Copper	0.59 in								0.031 in
