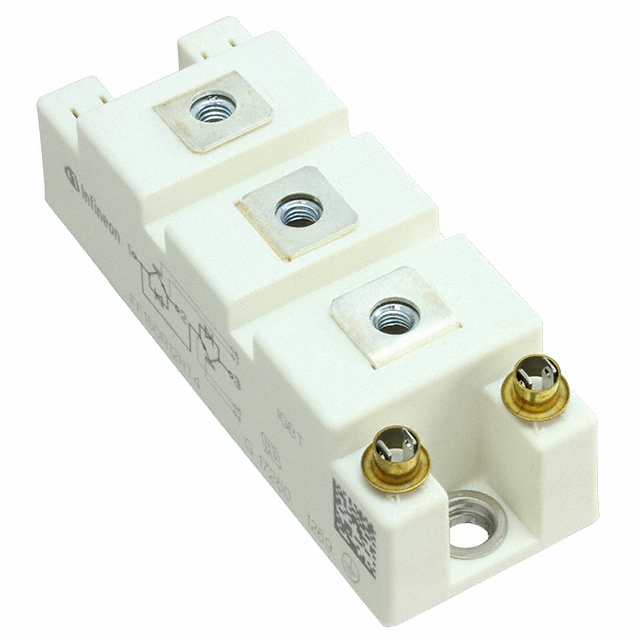

FF150R12RT4HOSA1

Obsolete

Infineon Technologies

IGBT MOD 1200V 150A 790W

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MOD 1200V 150A 790W

Technical Specifications

Parameters and characteristics for this part

Specification	FF150R12RT4HOSA1

Configuration	Half Bridge
Current - Collector (Ic) (Max) [Max]	150 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	790 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	IGBT Type	Vce(on) (Max) @ Vge, Ic	Input	Power - Max [Max]	NTC Thermistor	Configuration	Supplier Device Package	Package / Case
Infineon Technologies FF150R12RT4HOSA1	150 °C	-40 °C	1200 V	Chassis Mount	150 A	1 mA	Trench Field Stop	2.15 V	Standard	790 W		Half Bridge	Module	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Trench Field Stop Half Bridge 1200 V 150 A 790 W Chassis Mount Module

Technical documentation and resources

No documents available
