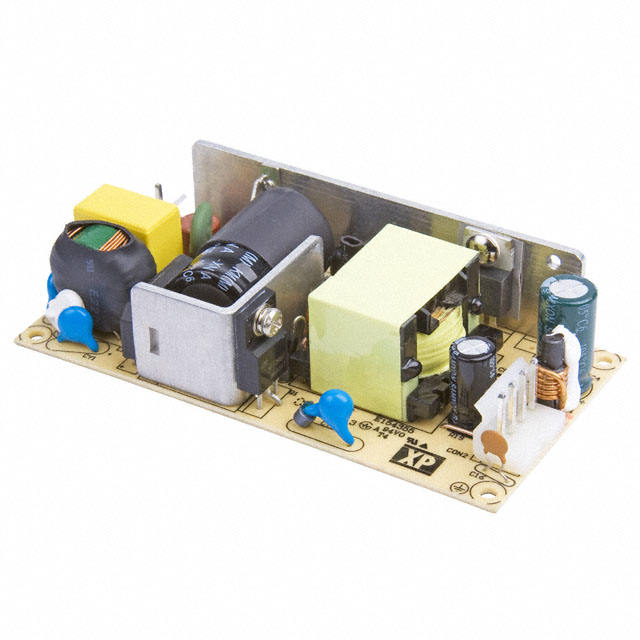

VCT60US24

Obsolete

XP Power

AC/DC CONVERTER 24V 60W

Search across all available documentation for this part.

Obsolete

XP Power

AC/DC CONVERTER 24V 60W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 24V 60W

Part	Efficiency	Minimum Load Required	Number of Outputs	Mounting Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 1	Voltage - Isolation	Standard Number
XP Power VCT60US24	88 %		1	Chassis Mount	24 V	-10 °C	70 °C	ITE (Commercial)	Universal Input	Open Frame	21.6 mm	0.84 "	4 in	50.8 mm	2 in	101.6 mm	2.5 A	3000 V	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
