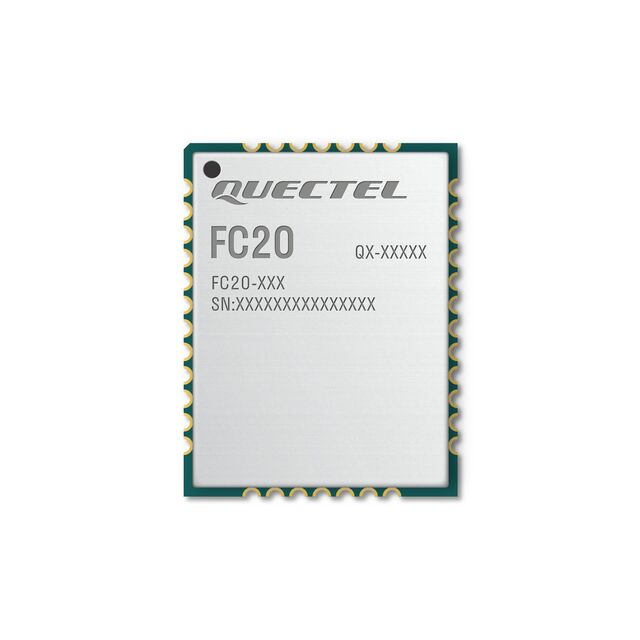

FC20TEA-Q73

Active

Quectel

RF TXRX MOD BLUETOOTH WIFISMD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MOD BLUETOOTH WIFISMD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Current - Receiving	Data Rate	Serial Interfaces	Protocol	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	RF Family/Standard	Power - Output	Frequency	Sensitivity	Utilized IC / Part
Quectel FC20N-Q73B	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm
Quectel FC20-Q73	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm	QCA1023
Quectel FC20N-Q73	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm
Quectel FC20TEA-Q73	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm
Quectel FC20NTEA-Q73B	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v4.2 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
