ASP-134486-01

Active

Samtec Inc.

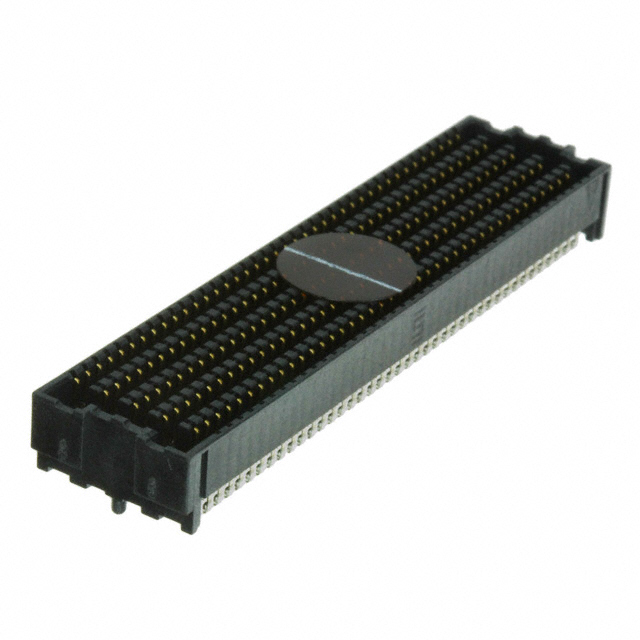

CONN, VITA 57 FMC, RCPT, 400POS, 10ROW

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-134486-01

Connector Type	Female Sockets, Array
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	VITA 57
Height Above Board	0.258 "
Height Above Board	6.55 mm
Mounting Type	Surface Mount
Number of Positions	400
Number of Rows	10
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

134486-01 Series

CONN, VITA 57 FMC, RCPT, 400POS, 10ROW

Part	Features	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions
Samtec Inc. ASP-134486-01	VITA 57	10	0.258 "	6.55 mm	0.05 in	1.27 mm	Gold	Array, Female Sockets	0.76 Ám	30 Áin	Surface Mount	400

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 31.42
		10	$ 30.05
		25	$ 28.92
		50	$ 26.80
		100	$ 23.02
	Tape & Reel (TR)	200	$ 23.02
		400	$ 21.01
Newark	Each	1	$ 30.58
		5	$ 28.86
		10	$ 27.14
		25	$ 26.07
		50	$ 25.25

Description

General part information

134486-01 Series

The ASP-134486-01 is a 400-pole 10-row 1.27mm Female FMC Connector with gold-plated copper alloy contacts. The VITA 57 Field Programmable Mezzanine Card (FMC) standard provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured, via mezzanine boards.
