MIKQ7-37PH001

Active

ITT Cannon, LLC

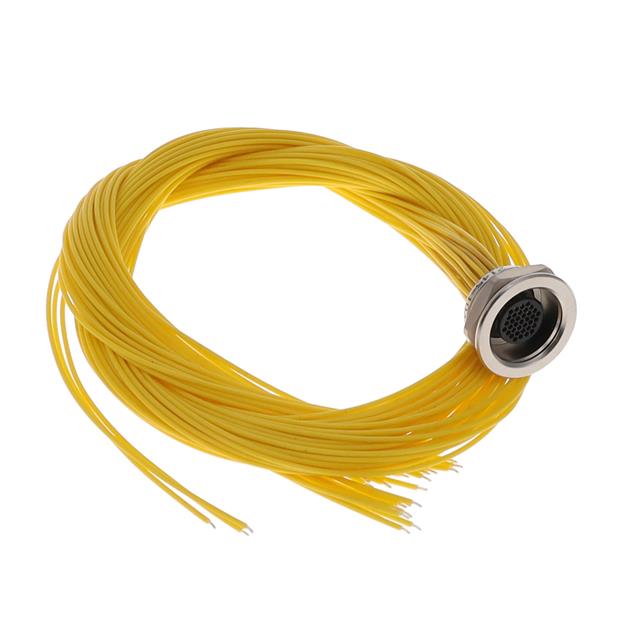

CIRC CBL 37POS RCPT TO WIRE 1.5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MIKQ7-37PH001

Active

ITT Cannon, LLC

CIRC CBL 37POS RCPT TO WIRE 1.5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIKQ7-37PH001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	37
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Yellow
Length [x]	457.2 mm
Length [x]	1.5 ft
Shielding	Unshielded

MIKQ7 Series

Part	Shielding	1st Connector Type	Color	Length [x]	Length [x]	Assembly Configuration	1st Connector Number of Positions	Cable Type	1st Connector Mounting Type	1st Connector Number of Positions Loaded	1st Connector Gender	1st Connector Orientation [custom]	2nd Connector Type	Shell Material	Insert Material	Shell Finish	Features	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Applications	Termination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Connector Type	Orientation	Number of Positions	Contact Finish - Mating	Mounting Feature	Length	Length
ITT Cannon, LLC MIKQ7-19PH076	Unshielded	Receptacle	Multiple	3 ft	914.4 mm	Standard	19	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads
ITT Cannon, LLC MIKQ7-19PH001	Unshielded	Receptacle	Yellow	1.5 ft	457.2 mm	Standard	19	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads
ITT Cannon, LLC MIKQ7-7PH074	Unshielded	Receptacle	Multiple	1.5 ft	457.2 mm	Standard	7	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads
ITT Cannon, LLC MIKQ7-7PH020	Unshielded													Brass	Thermoplastic	Electroless Nickel	Coupling Nut	Copper Alloy	1.27 µm	50 µin	Push-Pull	Instrumentation Medical	Wire Leads	3 A	-55 °C	125 °C	Metal	Male Pins Receptacle	Keyed	7	Gold	Flange
ITT Cannon, LLC MIKQ7-7PH078	Unshielded	Receptacle	Multiple			Standard	7	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads																				6 ft	1.83 m
ITT Cannon, LLC MIKQ7-7PH006	Unshielded	Receptacle	Multiple	3 ft	914.4 mm	Standard	7	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads
ITT Cannon, LLC MIKQ7-7PH45	Unshielded	Receptacle				Standard	7	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads
ITT Cannon, LLC MIKQ7-37PH048	Unshielded	Receptacle	Multiple	4 ft	1.22 m	Standard	37	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads
ITT Cannon, LLC MIKQ7-19PH011	Unshielded	Receptacle	Yellow	3 ft	914.4 mm	Standard	19	Individual	Panel Mount	All	Male Pins		Wire Leads
ITT Cannon, LLC MIKQ7-37PH001	Unshielded	Receptacle	Yellow	1.5 ft	457.2 mm	Standard	37	Individual	Panel Mount	All	Male Pins	Keyed	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 273.56

Description

General part information

MIKQ7 Series

Circular Cable Assembly Unshielded 1.50' (457.20mm)
