General part information

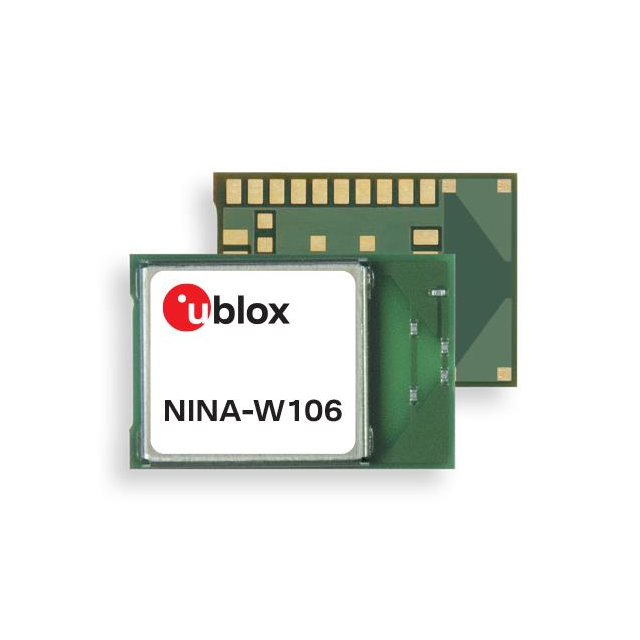

NINA-W106 Series
Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | NINA-W106-00B |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 95 mA |
| Current - Transmitting | 130 mA |
| Data Rate | 72 Mbps |
| Frequency | 2.4 GHz |
| Memory Size (Flash) | 4 MB |
| Memory Size (ROM) | 448 kB |
| Memory Size (SRAM) | 520 kB |
| Memory Type | ROM, SRAM, Flash |
| Modulation | GFSK, CCK, QDPSK, OFDM, DSSS, QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 36-SMD Module |
| Power - Output | 5 dBm |
| Protocol | Bluetooth v4.2, 802.11b, 802.11n, 802.11g |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -96 dBm |
| Serial Interfaces | SPI, UART, I2C, GPIO, ADC |
| Utilized IC / Part | ESP32-D0WD-V3 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
