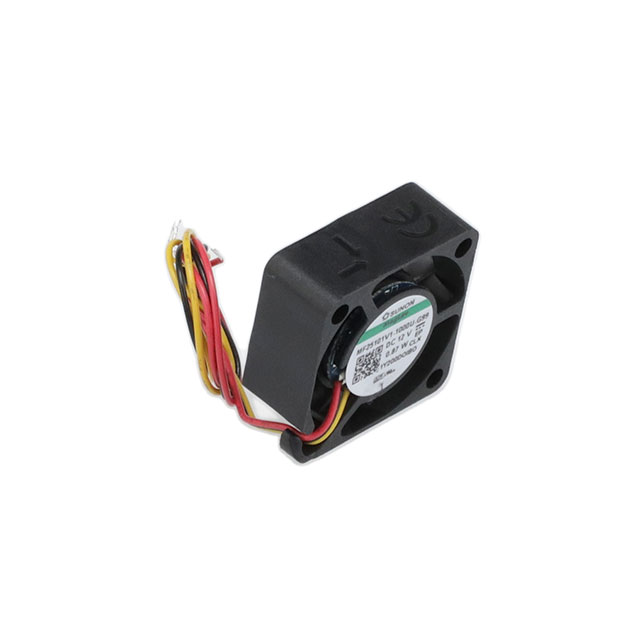

MF25101V1-1000U-G99

Active

Sunon Fans

FAN AXIAL 25X10MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 25X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF25101V1-1000U-G99

Air Flow	3.8 CFM
Air Flow	0.106 m³/min
Approval Agency	cURus, TUV
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	26 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	600 mW
RPM	14000 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Static Pressure	67.3 Pa
Static Pressure	0.27 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	6.8 g
Weight	0.015 lb
Width [y]	10 mm

FAN AXIAL 25X10MM 12VDC WIRE

Part	Width [y]	Power (Watts)	Material - Blade	Noise	Air Flow	Air Flow	Termination	RPM	Lifetime @ Temp.	Fan Type	Approval Agency	Current Rating (Amps)	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Features	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]
Sunon Fans MF25101V1-1000U-G99	10 mm	600 mW	Polybutylene Terephthalate (PBT)	26 dB	3.8 CFM	0.106 m³/min	3 Wire Leads	14000 RPM	70000 Hrs	Tubeaxial	cURus, TUV	50 mA	6.8 g	0.015 lb	13.8 VDC	6 VDC	Auto Restart, Speed Sensor (Tach)	12 VDC	67.3 Pa	0.27 in H2O	70 °C	70 °C	-10 °C	-10 °C	25 mm	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Vapo-Bearing™ 3.8 CFM (0.106m³/min) 3 Wire Leads
