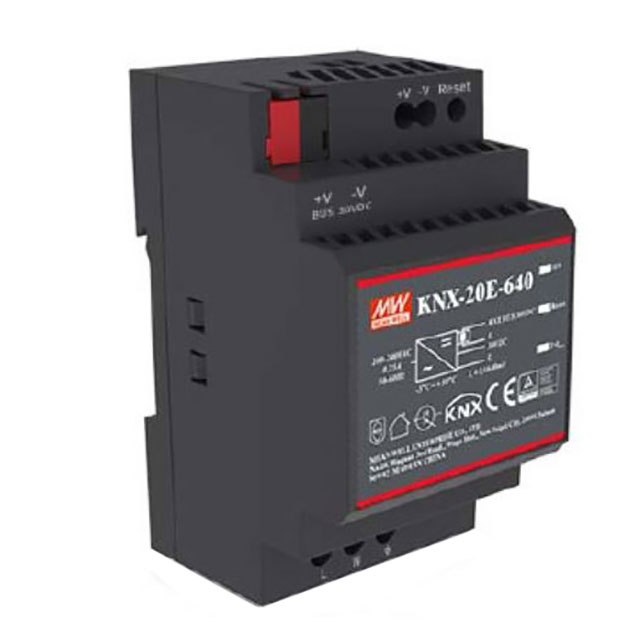

KNX-20E-640
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 30V 19W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KNX-20E-640
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 30V 19W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KNX-20E-640 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 180 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, EAC, TUV |
| Current - Output (Max) [Max] | 640 mA |
| DC Voltage - Input (Max) [Max] | 370 V |
| DC Voltage - Input (Min) [Min] | 230 V |
| Efficiency | 86 % |
| Features | IP20 |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 19 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.5 mm |
| Size / Dimension [y] | 52.5 mm |
| Size / Dimension [y] | 2.07 in |
| Size / Dimension [z] | 3.54 " |
| Size / Dimension [z] | 90 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.71 | |
| 5 | $ 78.32 | |||
| 10 | $ 75.33 | |||
| 25 | $ 71.56 | |||
Description
General part information
KNX-20E Series
AC/DC DIN RAIL SUPPLY 30V 19W
