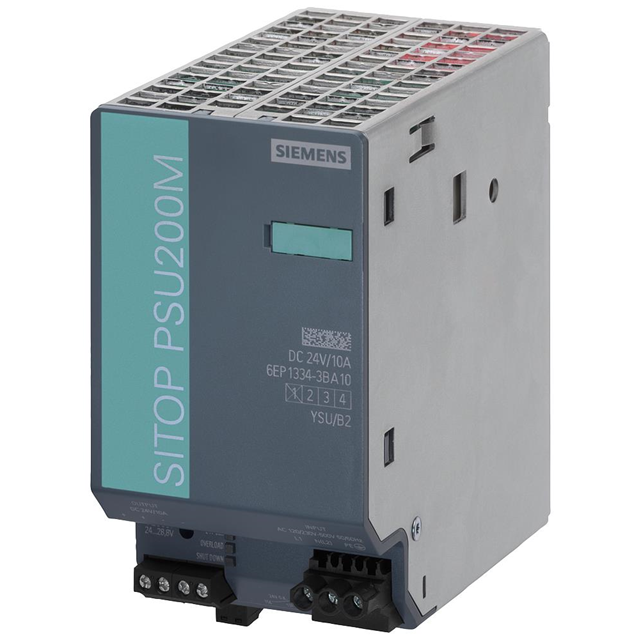

6EP13343BA10
ActiveSiemens
AC/DC CONVERTER 24V 240W
Deep-Dive with AI
Search across all available documentation for this part.
6EP13343BA10
ActiveSiemens
AC/DC CONVERTER 24V 240W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EP13343BA10 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CSA, FM, cULus, cCSAus, CB, CE |
| Current - Output 1 | 10 A |
| Efficiency | 91 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.76 " |
| Size / Dimension [x] | 121 mm |
| Size / Dimension [y] | 70 mm |
| Size / Dimension [y] | 2.76 in |
| Size / Dimension [z] | 4.92 in |
| Size / Dimension [z] | 125 mm |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 550 VAC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 176 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 380.02 | |
| 10 | $ 373.23 | |||
| 25 | $ 361.02 | |||
Description
General part information
6EP13343 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 176 ~ 550 VAC (2PH) Input
