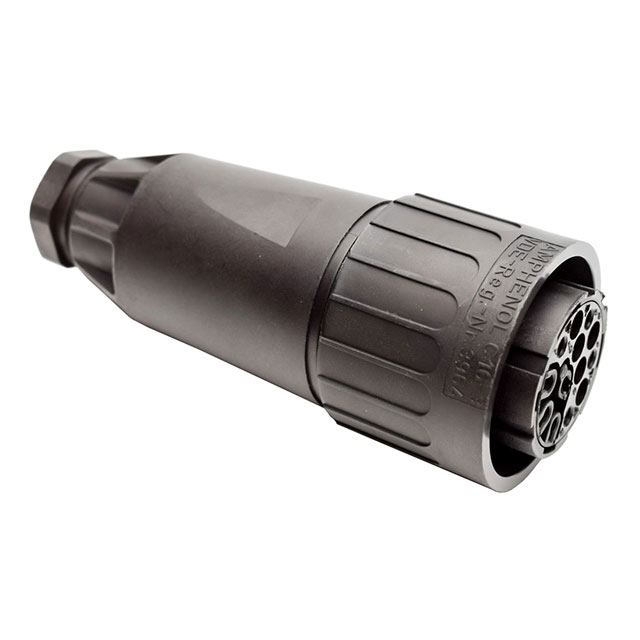

C01610E0120042

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 13POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 13POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C01610E0120042	C01610E012 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	2.5 mm, 1.6 mm	1.6 - 2.5 mm
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	13	13
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2	2
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLUG HSG FMALE 13POS INLINE

Part	Contact Type	Note	Contact Shape	Contact Size	Shell Material	Features	Orientation	Type	Includes	Shell Size - Insert	Housing Color	Ingress Protection	Shielding	Number of Positions	Material Flammability Rating	Mounting Type	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C01610E0120052	Crimp	Contacts Not Included	Circular	1.6 mm, 2.5 mm	Polyamide (PA66), Nylon 6/6	Backshell, Cable Clamp, Coupling Nut	N	For Female Sockets	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	2	Black	IP65 - Dust Tight, Water Resistant	Unshielded	13	UL94 V-0	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	125 °C	-40 °C
Amphenol Tuchel Industrial C01610E0120032	Crimp	Contacts Not Included	Circular	1.6 mm, 2.5 mm	Polyamide (PA66), Nylon 6/6	Backshell, Cable Clamp, Coupling Nut	N	For Female Sockets	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	2	Black	IP65 - Dust Tight, Water Resistant	Unshielded	13	UL94 V-0	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	125 °C	-40 °C
Amphenol Tuchel Industrial C01610E0120042	Crimp	Contacts Not Included	Circular	1.6 mm, 2.5 mm	Polyamide (PA66), Nylon 6/6	Backshell, Cable Clamp, Coupling Nut	N	For Female Sockets	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	2	Black	IP65 - Dust Tight, Water Resistant	Unshielded	13	UL94 V-0	Free Hanging (In-Line)	Plug Housing	Bayonet Lock	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 32.45

General part information

13 (12 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
