Q-2S04N000H060I

Active

Amphenol Custom Cable

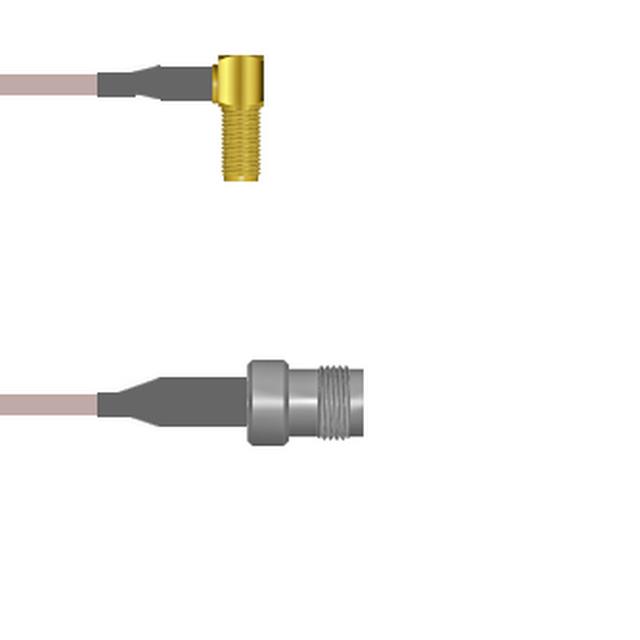

CBL ASSY SMA-TNC JACK-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2S04N000H060I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2S04N000H060I

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-2S04N0 Series

Part	Overall Impedance	Features	Color	1st Connector Mounting Type	Cable Impedance	1st Contact Gender	2nd Contact Gender	Connector Impedance	Frequency - Max [Max]	Cable Type	2nd Connector Mounting Type	1st Connector	2nd Connector	Length	Length	Length	Style	Length [x]	Length [x]
Amphenol Custom Cable Q-2S04N000H1.5M	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	59.1 in	4.9 ft	1.5 m	SMA to TNC
Amphenol Custom Cable Q-2S04N000H2.5M	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	98.4 in	8.2 '	2.5 m	SMA to TNC
Amphenol Custom Cable Q-2S04N000H084I	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	84 in	7 ft	2.1 m	SMA to TNC
Amphenol Custom Cable Q-2S04N000H009I	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	9 "		228.6 mm	SMA to TNC
Amphenol Custom Cable Q-2S04N000H036I	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	36 in		91.44 cm	SMA to TNC
Amphenol Custom Cable Q-2S04N000H003M	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	118.1 in	9.8 '	3 m	SMA to TNC
Amphenol Custom Cable Q-2S04N000H018I	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack				SMA to TNC	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2S04N000H060I	50 Ohms	Shielded	Copper	Free Hanging (In-Line)	50 Ohms	Female	Female	50 Ohms	11 GHz	RG-142	Free Hanging (In-Line)	Right Angle SMA Jack	TNC Jack	5 '	5 ft	1.5 m	SMA to TNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 158.96
		25	$ 155.85
		50	$ 152.75
		100	$ 149.64
		250	$ 146.54

Description

General part information

Q-2S04N0 Series

Cable Assembly Coaxial SMA to TNC RG-142 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
