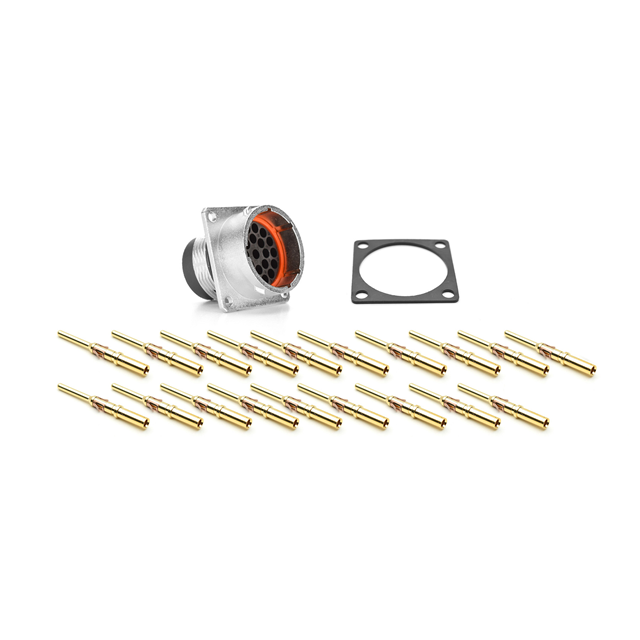

RT001619PKNH03-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RSSM Datasheet +1

RT001619PKNH03-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 19POS GOLD CRIMP

Deep-Dive with AI

Documentsecomate RSSM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT001619PKNH03-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP69K, IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VAC

RT001619 Series

Part	Type	Contact Shape	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Feature	Note	Shielding	Number of Positions	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Material Flammability Rating	Shell Finish	Connector Type	Orientation	Contact Size	Housing Color	Insert Material	Contact Type	Features	Primary Material	Color	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating	Voltage Rating	Termination	Applications	Contact Material
Amphenol Sine Systems Corp RT001619SNH	For Female Sockets	Circular	16	19	Flange	Contacts Not Included	Shielded	19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Zinc Alloy	UL94 V-0	Nickel	Receptacle Housing	N	16	Silver	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT001619PNHEC03R	For Male Pins	Circular	16	19	Flange	Contacts Not Included	Shielded	19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Zinc Alloy	UL94 V-0	Nickel	Receptacle Housing	N	16	Silver	Thermoplastic	Crimp	Backshell
Amphenol Sine Systems Corp RT001619PNHECR	For Male Pins	Circular	16	19	Flange	Contacts Not Included	Shielded	19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Zinc Alloy	UL94 V-0	Nickel	Receptacle Housing	N	16	Silver	Thermoplastic	Crimp	Cap (Cover)	Metal
Amphenol Sine Systems Corp RT001619SNHEC	For Female Sockets	Circular	16	19	Flange	Contacts Not Included	Shielded	19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Zinc Alloy	UL94 V-0	Nickel	Receptacle Housing	N	16	Silver	Thermoplastic	Crimp	Backshell
Amphenol Sine Systems Corp RT001619PNH-K			16	19	Flange			19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Zinc Die Cast		Nickel	Male Pins Receptacle	N						Metal	Silver	13 A	Gold	Flash	250 VAC	Crimp
Amphenol Sine Systems Corp RT001619SNHECR	For Female Sockets	Circular	16	19	Flange	Contacts Not Included	Shielded	19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Zinc Alloy	UL94 V-0	Nickel	Receptacle Housing	N	16	Silver	Thermoplastic	Crimp	Cap (Cover)	Metal
Amphenol Sine Systems Corp RT001619PNH03	For Male Pins	Circular	16	19	Flange	Contacts Not Included	Shielded	19	Bayonet Lock	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Zinc Alloy	UL94 V-0	Nickel	Receptacle Housing	N	16	Silver	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT001619PKNH03-K			16	19	Flange		Shielded	19	Bayonet Lock	IP67 IP69K	-40 °C	105 ░C	Zinc Die Cast	UL94 V-0	Nickel	Male Pins Receptacle	N			Polyamide (PA66) Nylon 6/6			Metal	Silver	13 A	Gold	Flash	250 VAC	Crimp	Aerospace Automation Industrial Telecom Transportation	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.59
		10	$ 20.55

Description

General part information

RT001619 Series

19 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

ecomate RSSM

Datasheet

ecomate-Family-Flyer-2019

Datasheet
