EEG.00.302.CLL

Active

LEMO

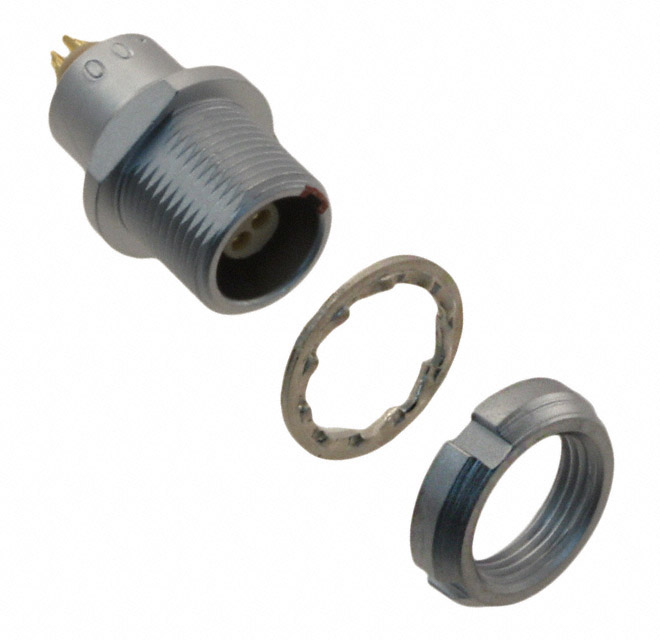

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.00.302.CLL	EEG.00.302 Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302
Shielding	Shielded	Shielded
Termination	-	Solder

Circular Push Pull Connectors BEND RELIEF

Part	Shell Size - Insert	Contact Material	Connector Type	Contact Finish - Mating	Material Flammability Rating	Shell Material	Primary Material	Fastening Type	Insert Material	Termination	Number of Positions	Ingress Protection	Mounting Feature	Shielding	Current Rating (Amps)	Mounting Type	Shell Finish	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation
LEMO EEG.00.302.CLN	302	Bronze	Receptacle, Female Sockets	Gold	UL94 V-0	Brass	Metal	Push-Pull	Polyetheretherketone (PEEK)	Solder	2	IP50	Bulkhead - Front Side Nut	Shielded	5 A	Panel Mount, Through Hole	Chrome	Silver	59 Áin	1.5 Ám	-55 °C	250 °C	G
LEMO EEG.00.302.CLL	302	Bronze	Receptacle, Female Sockets	Gold	UL94 V-0	Brass	Metal	Push-Pull	Polyetheretherketone (PEEK)		2	IP50	Bulkhead - Front Side Nut	Shielded	5 A		Chrome	Silver	59 Áin	1.5 Ám	-55 °C	250 °C	G
