H8PPS-1618G
ActiveAssmann WSW Components
DIP CABLE - HDP16S/AE16G/HDP16S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H8PPS-1618G
ActiveAssmann WSW Components
DIP CABLE - HDP16S/AE16G/HDP16S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H8PPS-1618G | H8PPS-16 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed | DIP to DIP, Reversed |
| Contact Finish | Tin | Tin |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 457.2 mm | 457.2 - 914.4 mm |
| Length [x] | 1.5 ft | 1.5 - 3 ft |
| Number of Positions | 16 | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Socket (0.3"), Board In | Socket (0.3"), Board In |
H8PPS-16 Series
DIP CABLE - HDP16S/AE16M/HDP16S
| Part | Pitch - Cable | Pitch - Cable | Usage | Cable Termination | Length [x] | Length [x] | Color | Number of Rows | Shielding | Contact Finish | Number of Positions | Connector Type | Pitch - Connector | Pitch - Connector | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components H8PPS-1618M | 0.05 " | 1.27 mm | Board In, Socket (0.3") | IDC | 457.2 mm | 1.5 ft | Multiple, Ribbon | 2 | Unshielded | Tin | 16 | DIP to DIP, Reversed | 0.1 in | 2.54 mm | |||
Assmann WSW Components H8PPS-1618G | 0.05 " | 1.27 mm | Board In, Socket (0.3") | IDC | 457.2 mm | 1.5 ft | 2 | Unshielded | Tin | 16 | DIP to DIP, Reversed | 0.1 in | 2.54 mm | ||||
Assmann WSW Components H8PPS-1606G | 0.05 " | 1.27 mm | Board In, Socket (0.3") | IDC | 2 | Unshielded | Tin | 16 | DIP to DIP, Reversed | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | |||
Assmann WSW Components H8PPS-1636M | 0.05 " | 1.27 mm | Board In, Socket (0.3") | IDC | 914.4 mm | 3 ft | Multiple, Ribbon | 2 | Unshielded | Tin | 16 | DIP to DIP, Reversed | 0.1 in | 2.54 mm | |||
Assmann WSW Components H8PPS-1636G | 0.05 " | 1.27 mm | Board In, Socket (0.3") | IDC | 914.4 mm | 3 ft | 2 | Unshielded | Tin | 16 | DIP to DIP, Reversed | 0.1 in | 2.54 mm | ||||
Assmann WSW Components H8PPS-1606M | 0.05 " | 1.27 mm | Board In, Socket (0.3") | IDC | Multiple, Ribbon | 2 | Unshielded | Tin | 16 | DIP to DIP, Reversed | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.99 | |
| 10 | $ 2.71 | |||
| 25 | $ 2.57 | |||
| 50 | $ 2.51 | |||
| 100 | $ 2.39 | |||
| 250 | $ 2.09 | |||
| 500 | $ 2.03 | |||
| 1000 | $ 1.73 | |||
| 2500 | $ 1.61 | |||
Description
General part information
H8PPS-16 Series

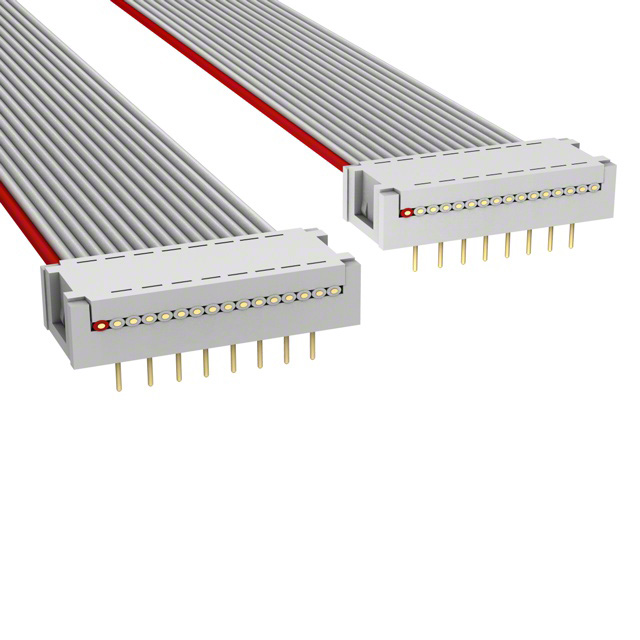

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
