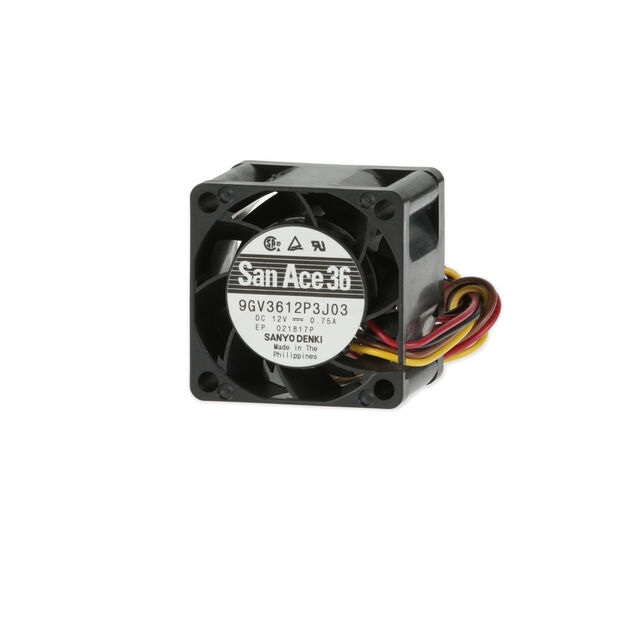

9GV3612P3J03

Active

Sanyo Denki America Inc.

FAN AXIAL 36X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Handling Instructions for Fan Motors +2

9GV3612P3J03

Active

Sanyo Denki America Inc.

FAN AXIAL 36X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Handling Instructions for Fan Motors +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GV3612P3J03

Air Flow	19.4 CFM
Air Flow	0.543 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	750 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	58.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	9 W
RPM	19000 RPM
Size / Dimension [x]	36 mm
Size / Dimension [z]	36 mm
Static Pressure	525.1 Pa
Static Pressure	2.108 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.102 lb
Weight	46.27 g
Width [y]	28 mm

9GV3612 Series

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Power (Watts)	Noise	Material - Blade	Termination	Size / Dimension [x]	Size / Dimension [z]	RPM	Current Rating (Amps)	Approval Agency	Fan Type	Lifetime @ Temp.	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Air Flow	Air Flow	Weight	Weight	Width [y]	Voltage - Rated	Material - Frame	Operating Temperature [Max]	Features
Sanyo Denki America Inc. 9GV3612J302	-10 °C	-10 °C	60 °C	60 °C	9 W	58.5 dB	Plastic	2 Wire Leads	36 mm	36 mm	19000 RPM	750 mA	CSA TUV UL	Tubeaxial	40000 Hrs	Ball	13.2 VDC	7 V	525.6 Pa	2.11 in H2O	19.4 CFM	0.543 m³/min	0.102 lb	46.27 g	28 mm	12 VDC	Plastic
Sanyo Denki America Inc. 9GV3612G3D01	-20 C	-20 °C	60 °C			52 dB	Plastic	3 Wire Leads	36 mm	36 mm	14000 RPM	0.34 A	CSA TUV UL	Tubeaxial	40000 Hrs	Ball	13.2 VDC	7 V	275 Pa	1.104 in H2O			0.102 lb	46.27 g	28 mm	12 VDC	Plastic	60 °C	Locked Rotor Sensor
Sanyo Denki America Inc. 9GV3612G302	-10 °C	-10 °C	60 °C	60 °C	4.1 W	52 dB	Plastic	2 Wire Leads	36 mm	36 mm	14000 RPM	0.34 A	CSA TUV UL	Tubeaxial	40000 Hrs	Ball	13.2 VDC	7 V	274 Pa	1.1 in H2O			0.102 lb	46.27 g	28 mm	12 VDC	Plastic
Sanyo Denki America Inc. 9GV3612G301	-20 C	-20 °C	60 °C			52 dB	Plastic	3 Wire Leads	36 mm	36 mm	14000 RPM	0.34 A	CSA TUV UL	Tubeaxial	40000 Hrs	Ball	13.2 VDC	7 V	275 Pa	1.104 in H2O			0.101 lb	45.81 g	28 mm	12 VDC	Plastic	60 °C	Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV3612J3D01	-20 C	-20 °C	60 °C		9 W	58.5 dB	Plastic	3 Wire Leads	36 mm	36 mm	19000 RPM	750 mA	CSA TUV UL	Tubeaxial	40000 Hrs	Ball	13.2 VDC	7 V	525.1 Pa	2.108 in H2O	19.4 CFM	0.543 m³/min	0.102 lb	46.27 g	28 mm	12 VDC	Plastic	60 °C	Locked Rotor Sensor
Sanyo Denki America Inc. 9GV3612P3J03	-10 °C	-10 °C	60 °C	60 °C	9 W	58.5 dB	Plastic	4 Wire Leads	36 mm	36 mm	19000 RPM	750 mA	CSA TUV UL	Tubeaxial	40000 Hrs	Ball	13.2 VDC	7 V	525.1 Pa	2.108 in H2O	19.4 CFM	0.543 m³/min	0.102 lb	46.27 g	28 mm	12 VDC	Plastic		PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.60
		10	$ 17.75
		25	$ 16.70
		50	$ 16.06
		140	$ 14.80
		280	$ 13.84
		560	$ 13.63

Description

General part information

9GV3612 Series

Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 19.4 CFM (0.543m³/min) 4 Wire Leads
