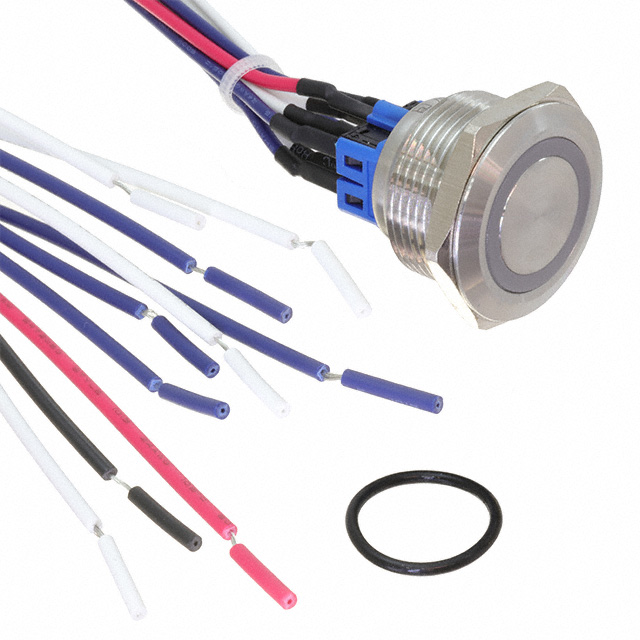

PV9FWV0SS-331

Active

E-Switch

SWITCH PB 4PST-2NO/2NC 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB 4PST-2NO/2NC 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV9FWV0SS-331

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	4PST-2NO/2NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP66
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	28 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Electrical Life	Mounting Type	Type	Circuit	Color - Actuator/Cap	Illumination Voltage (Nominal)	Actuator Type	Ingress Protection	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - DC	Illumination Type, Color	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life
E-Switch PV9FWV0SS-311	50000 Cycles	Panel Mount Front	Anti-Vandal Illuminated	4PST-2NO/2NC	Silver	1.8 VDC	Button Flush Round	IP66	2 A	28 mm	No Marking	48 V	LED Red	Wire Leads	Off-Mom On-Mom	55 °C	-20 C	1000000 Cycles
E-Switch PV9FWV0SS-331	50000 Cycles	Panel Mount Front	Anti-Vandal Illuminated	4PST-2NO/2NC	Silver	2.8 VDC	Button Flush Round	IP66	2 A	28 mm	No Marking	48 V	Green LED	Wire Leads	Off-Mom On-Mom	55 °C	-20 C	1000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.72

General part information

Pushbutton Switch 4PST-2NO/2NC Anti-Vandal, Illuminated Panel Mount, Front

Technical documentation and resources

No documents available
