XKN.M13.GLLA

Active

LEMO

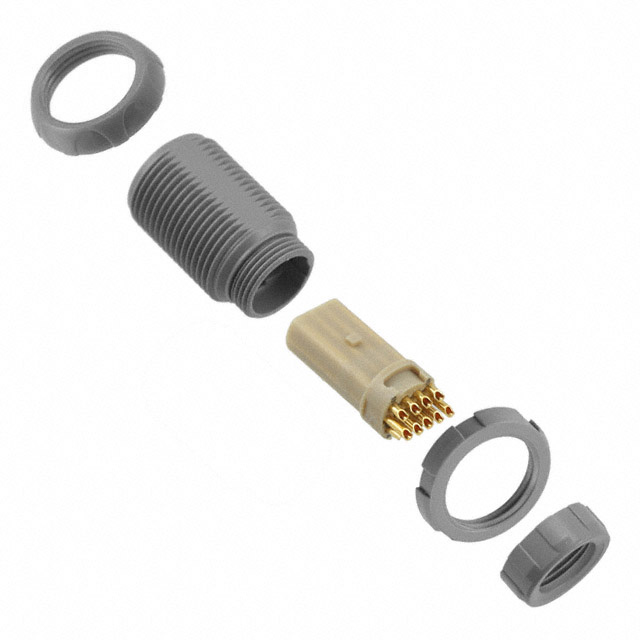

CONN RCPT FMALE 13P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XKN.M13.GLLA	XKN.M13 Series

Applications	Testing Equipment, Medical, Industrial, Measurement	Testing Equipment, Medical, Industrial, Measurement
Color	Gray, Blue	Gray, White, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	4 A	4 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Number of Positions	13	13
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M13	M13
Shielding	Unshielded	Unshielded
Termination	-	Crimp

CONN RCPT FMALE 13POS GOLD CRIMP

Part	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Color	Shell Size - Insert	Shielding	Current Rating (Amps)	Fastening Type	Applications	Insert Material	Primary Material	Number of Positions	Shell Material	Connector Type	Ingress Protection	Contact Finish - Mating	Termination
LEMO XKN.M13.GLMG	Front and Rear Side Nut	-50 °C	170 °C	N	Gray	M13	Unshielded	4 A	Push-Pull	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Plastic	13	Sulfone	Receptacle, Female Sockets	IP50	Gold	Crimp
LEMO XKN.M13.BLLB	Front and Rear Side Nut	-50 °C	170 °C	N	White	M13	Unshielded	4 A	Push-Pull	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Plastic	13	Sulfone	Receptacle, Female Sockets	IP50	Gold
LEMO XKN.M13.GLLA	Front and Rear Side Nut	-50 °C	170 °C	N	Blue, Gray	M13	Unshielded	4 A	Push-Pull	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Plastic	13	Sulfone	Receptacle, Female Sockets	IP50	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

13 Position Circular Connector Receptacle, Female Sockets Solder Cup
