VEC2415-TL-E

Active

ON Semiconductor

TRANS MOSFET N-CH 60V 3A 8-PIN VEC T/R

Search across all available documentation for this part.

Active

ON Semiconductor

TRANS MOSFET N-CH 60V 3A 8-PIN VEC T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VEC2415-TL-E	VEC2415 Series

Configuration	2 N-Channel (Dual)	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	3 A	3 A
Drain to Source Voltage (Vdss)	60 V	60 V
FET Feature	Logic Level Gate	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	10 nC	10 nC
Input Capacitance (Ciss) (Max) @ Vds	505 pF	505 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	150 °C	150 °C

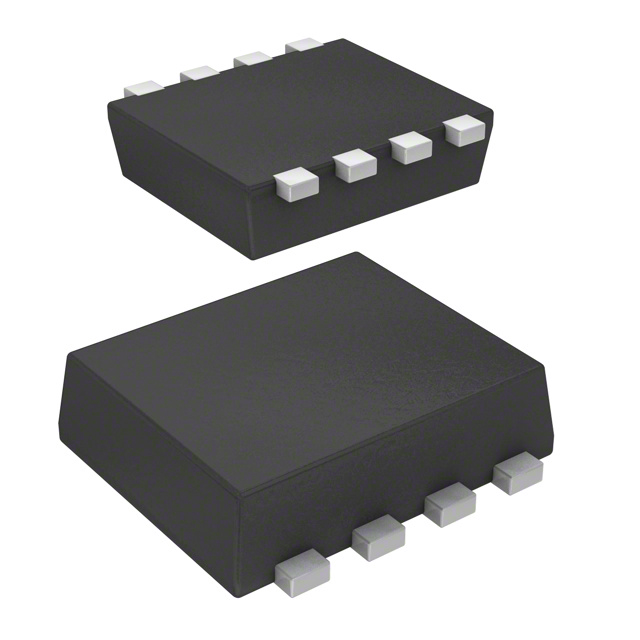

Package / Case	-	8-SMD, Flat Lead
Power - Max [Max]	1 W	1 W
Rds On (Max) @ Id, Vgs	80 mOhm	80 mOhm
Supplier Device Package	SOT-28FL/VEC8	SOT-28FL/VEC8
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.6 V	2.6 V

TRANS MOSFET N-CH 60V 3A 8-PIN VEC T/R

Part	Mounting Type	Supplier Device Package	FET Feature	Technology	Power - Max [Max]	Input Capacitance (Ciss) (Max) @ Vds	Configuration	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature	Package / Case
ON Semiconductor VEC2415-TL-E	Surface Mount	SOT-28FL/VEC8	Logic Level Gate	MOSFET (Metal Oxide)	1 W	505 pF	2 N-Channel (Dual)	2.6 V	60 V	3 A	80 mOhm	10 nC	150 °C
ON Semiconductor VEC2415-TL-EX	Surface Mount	SOT-28FL/VEC8		MOSFET (Metal Oxide)	1 W	505 pF	2 N-Channel (Dual)	2.6 V	60 V	3 A	80 mOhm	10 nC	150 °C	8-SMD, Flat Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 60V 3A 1W Surface Mount SOT-28FL/VEC8
