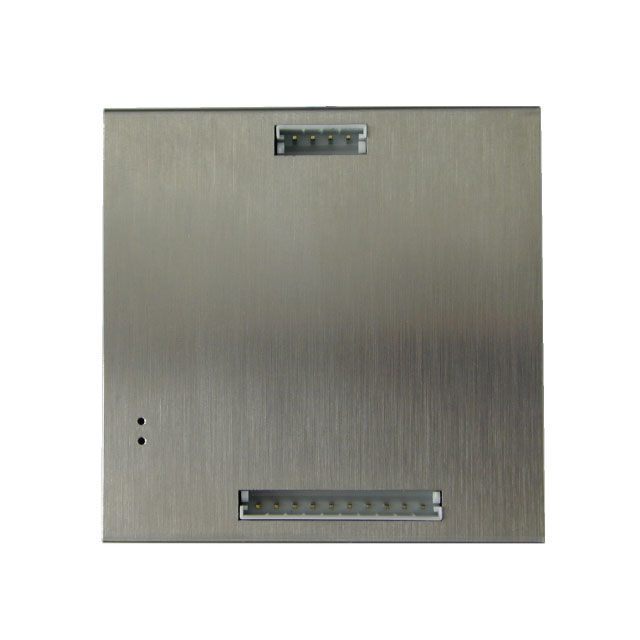

TMCM-1276-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1276-CANOPEN | TMCM-1276 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 3 A | 3 A |
| For Use With/Related Products | - | TMCM-1276 Series |
| Interface | CAN | CAN |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Module | Module |
| Usage | - | Motor |
| Voltage - Supply | 24 VDC | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 187.35 | |
| 10 | $ 156.02 | |||
| 25 | $ 154.35 | |||
TMCM-1276 Series
CABLE LOOM FOR TMCM-1276
| Part | Usage | Accessory Type | For Use With/Related Products | Motor Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Control / Drive Type | Mounting Type | Interface | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1276-CABLE | Motor | Cable Assembly | TMCM-1276 Series | |||||||||
Analog Devices Inc./Maxim Integrated TMCM-1276-CANOPEN | Stepper | Module | -30 ░C | 40 °C | 3 A | Bipolar, Stepper | Chassis Mount | CAN | 24 VDC | |||
Analog Devices Inc./Maxim Integrated TMCM-1276-TMCL | Stepper | Module | -30 ░C | 40 °C | 3 A | Bipolar, Stepper | Chassis Mount | CAN | 24 VDC |
Description
General part information
TMCM-1276 Series
Stepper, Bipolar 24VDC Supply 3A Load
