FP-301VW-3-BLACK-4'-BULK

Active

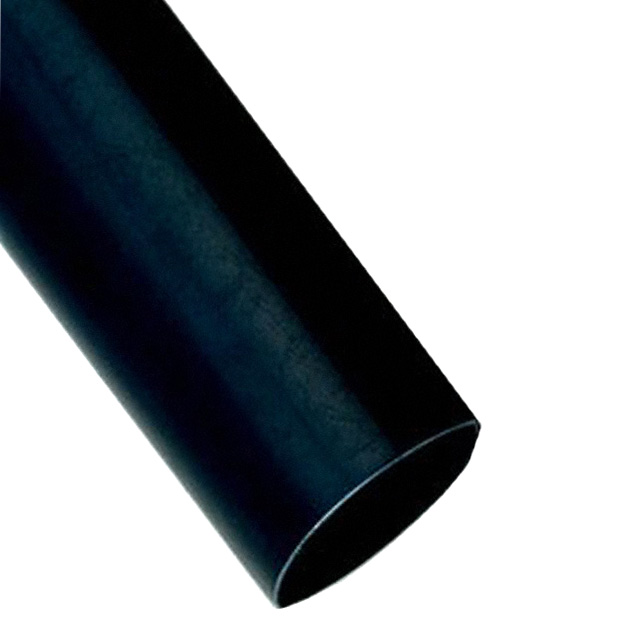

HEATSHRINK 3" X 4' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

FP-301VW-3-BLACK-4'-BULK

Active

HEATSHRINK 3" X 4' BLACK

Deep-Dive with AI

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FP-301VW Series

Heat Shrink Tubing, Flexible 3.000" (76.20mm) 2 to 1 Black 4.00' (1.22m)

Documents

Technical documentation and resources

Datasheet

Heat Shrink Tubing and Devices Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FP-301VW-3-BLACK-4'-BULK	FP-301VW Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	-	0.58 mm
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	38.1 mm	0.023 - 50.8 mm
Inner Diameter - Recovered [diameter]	1.5 in	0.031 - 2 in
Inner Diameter - Supplied	-	2.36 mm
Inner Diameter - Supplied [diameter]	3 in	0.046 - 4 in
Inner Diameter - Supplied [diameter]	76.2 mm	0.093 - 101.6 in
Length	-	1.52 - 304.8 mm
Length	-	0.75 - 6 "
Length	-	0.5 '
Length	-	0.062 - 3000 ft
Length	-	4 "
Length	-	Enter Number of Feet in Order Quantity
Length [x]	1.22 m	1.22 - 152.4 m
Length [x]	4 ft	0.333 - 500 ft
Material	Polyolefin (PO)	Polyolefin (PO), Polyolefin
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	1.27 mm	0.41 - 1.4 mm
Recovered Wall Thickness	0.05 in	0.016 - 0.055 in
Recovered Wall Thickness	-	0.025 "
Recovered Wall Thickness	-	0.64 mm
Recovered Wall Thickness	-	0.03 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

FP-301VW Series

HEATSHRINK 0.093" X 0.5' BLACK

Part	Material	Shelf Life	Type	Shrinkage Ratio	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Color	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Length	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
3M FP-301-VW-3/32-BLACK	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	0.093 in	2.36 mm	Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	1.17 mm	0.046 in	0.02 in	0.51 mm	152.4 mm	6 "	0.5 '
3M FP-301VW-3-BLACK-4'-BULK	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	76.2 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	38.1 mm	1.5 in	0.05 in	1.27 mm				3 in	1.22 m	4 ft
3M FP-301VW-1/16-BLACK-4'-BU	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	1.6 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	0.79 mm	0.031 in	0.017 in	0.43 mm				0.063 in	1.22 m	4 ft
3M FP-301VW-1/8-BLACK-500'	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	3.18 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	1.57 mm	0.062 in	0.02 in	0.51 mm				0.125 "	152.4 m	500 '
3M FP-301-VW-3/64-48-BLACK	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	1.17 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	0.023 in		0.016 "	0.41 mm				0.046 in	1.22 m	4 ft	0.58 mm
3M FP-301VW-3/64-BLACK-4'-BU	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	1.17 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	0.023 in		0.016 "	0.41 mm				0.046 in	1.22 m	4 ft	0.58 mm
3M FP-301VW-1/8-BLACK-4'-BUL	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	3.18 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	1.57 mm	0.062 in	0.02 in	0.51 mm				0.125 "	1.22 m	4 ft
3M FP-301VW-1-BLACK-100'	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	25.4 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	12.7 mm	0.5 in	0.035 in	0.89 mm	1.52 m, 7.6 m, 15.2 m, 19.05 mm, 25.4 mm, 50.8 mm, 152.4 mm	0.75 ", 1 in, 2 ", 6 "	0.5 '	1 in				0.062 ', 0.083 ft, 0.167 ', 5 ', 25 ft, 50 ft
3M FP-301-VW-3/8-48-BLACK	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	9.53 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	4.75 mm	0.187 in						0.375 in	1.22 m	4 ft			0.025 "	0.64 mm
3M FP-301VW-4-BLACK-50'	Polyolefin (PO)	120 Months	Tubing, Flexible	2 to 1	Date of Manufacture	101.6 mm		Flame Retardant	Black	100 °C	27 °C, 80 °F	10 °C	135 °C	-55 °C	50.8 mm	2 in	0.055 in	1.4 mm	15.2 m			4 "				50 ft
