RAPC322X

Active

Switchcraft Inc.

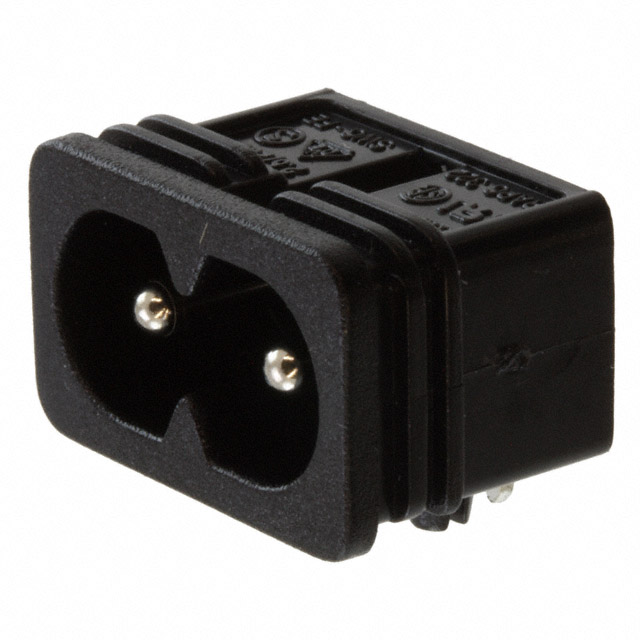

PWR ENT RCPT IEC320-C8 PNL SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

PWR ENT RCPT IEC320-C8 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	RAPC322X

Accomodates a Fuse	False
Connector Style	Non-Polarized, IEC 320-C8
Connector Type	Receptacle, Male Pins
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Number of Positions	2
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder

PWR ENT RCPT IEC320-C8 PNL SLDR

Part	Connector Style	Accomodates a Fuse	Termination	Material Flammability Rating	Mounting Type	Connector Type	Panel Thickness [custom]	Panel Thickness [custom]	Filter Type	Number of Positions
Switchcraft Inc. RAPC322X	IEC 320-C8, Non-Polarized		Solder	UL94 V-0	Panel Mount, Snap-In, Through Hole, Right Angle	Male Pins, Receptacle	0.059 in	1.5 mm	Unfiltered - Commercial	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In; Through Hole, Right Angle
