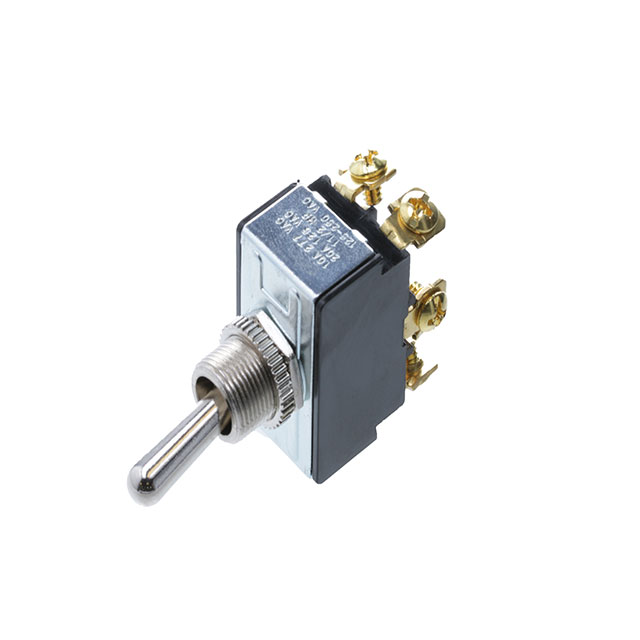

TB1-2D-AC-6

Active

Switch Components

VAC DPDT ON-ON, SCREW, 15/32

Search across all available documentation for this part.

Active

Switch Components

VAC DPDT ON-ON, SCREW, 15/32

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TB1-2D-AC-6	TB1-2D Series

Actuator Length [x]	16.5 mm	16.5 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	10 A	10 - 21 A
Electrical Life	-	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12 - 12.2 mm
Switch Function	On-On	On-On
Termination Style	Screw Terminal	Quick Connect - 0.250" (6.3mm), Solder Lug, Screw Terminal
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	-	14 V

VAC DPDT ON-ON, TABS, 15/32

Part	Switch Function	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Bushing Thread	Voltage Rating - AC	Illumination	Current Rating (Amps)	Circuit	Actuator Length [x]	Voltage Rating - DC	Electrical Life
Switch Components TB1-2D-AC-1	On-On	Standard Round	Quick Connect - 0.250" (6.3mm)	12.2 mm	15/32-32	250 V	Non-Illuminated	10 A	DPDT	16.5 mm
Switch Components TB1-2D-AC-5	On-On	Standard Round	Solder Lug	12.2 mm	15/32-32	250 V	Non-Illuminated	10 A	DPDT	16.5 mm
Switch Components TB1-2D-DC-1	On-On	Standard Round	Quick Connect - 0.250" (6.3mm)	12 mm	15/32-32	125 V	Non-Illuminated	20 A, 21 A	DPDT	16.5 mm	14 V	6000 Cycles
Switch Components TB1-2D-DC-6	On-On	Standard Round	Screw Terminal	12 mm	15/32-32	125 V	Non-Illuminated	20 A, 21 A	DPDT	16.5 mm	14 V	6000 Cycles
Switch Components TB1-2D-AC-6	On-On	Standard Round	Screw Terminal	12.2 mm	15/32-32	250 V	Non-Illuminated	10 A	DPDT	16.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Panel Mount
