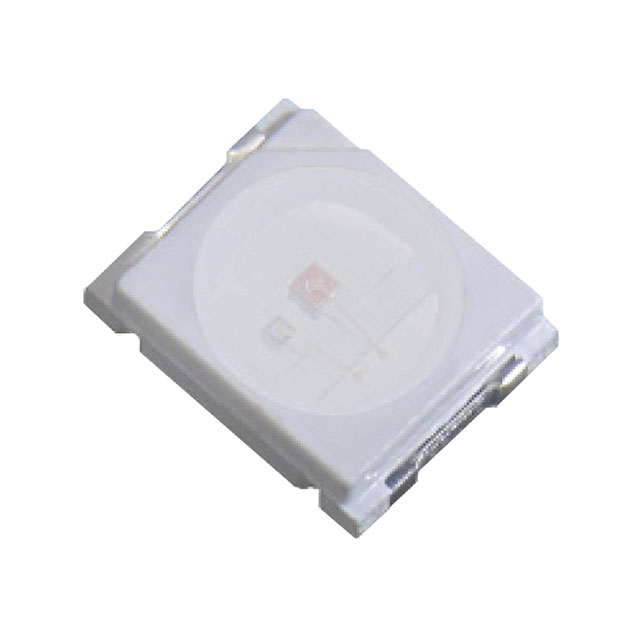

XZMOLA109FS
ActiveSunLED
LED RED CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMOLA109FS
ActiveSunLED
LED RED CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMOLA109FS |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 150 mA |
| Height (Max) [Max] [z] | 1.05 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.5 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 4190 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.5 V |
| Wavelength - Dominant | 623 nm |
| Wavelength - Peak | 631 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 0.72 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.40 | |||
| Tape & Reel (TR) | 2000 | $ 0.38 | ||
| 6000 | $ 0.38 | |||
| 10000 | $ 0.37 | |||
Description
General part information
XZMOLA109 Series
Red 623nm LED Indication - Discrete 2.5V 1411 (3528 Metric)
