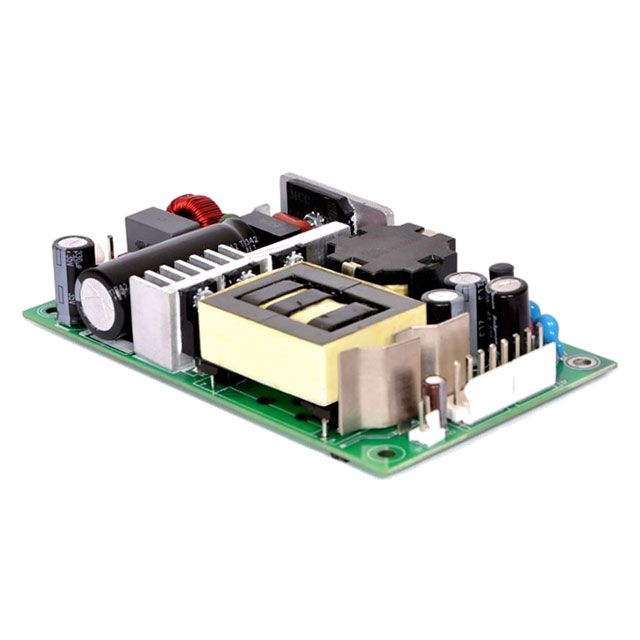

MBC350-1T15L

Active

Bel Power Solutions

POWER SUPPLY;MBC350-1T15L;AC-DC;

Deep-Dive with AI

Search across all available documentation for this part.

MBC350-1T15L

Active

Bel Power Solutions

POWER SUPPLY;MBC350-1T15L;AC-DC;

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MBC350 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBC350-1T15L	MBC350 Series

Applications	Medical	Medical
Approval Agency	UL, cUL, CE, NEMKO	CE, UL, cUL, NEMKO
Current - Output 1	12 A	3.45 - 15 A
Efficiency	92 %	92 - 94 %
Features	Universal Input, Adjustable Output, PFC, Standby Output	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	-	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	180 W	180 - 200 W
Power (Watts)	350 W	350 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1 "	1 "
Size / Dimension [z]	25.4 mm	25.4 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	15 V	12 - 48 V

MBC350 Series

AC/DC POWER SUPPLY SINGLE-OUT 24V 8.33(CONVECTION)A/14.6(FORCED AIR)A 350W 6-PIN

Part	Applications	Power (Watts)	Power (Watts)	Current - Output 1	Features	Efficiency	Mounting Type	Voltage - Isolation	Number of Outputs	Approval Agency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Input [Min]	Voltage - Input [Max]
Bel Power Solutions MBC350-1T24L	Medical	350 W	200 W	8.33 A	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	93 %	Chassis Mount	4000 V	1	CE	24 V	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame
Bel Power Solutions MBC350-1024L	Medical	350 W	200 W	8.33 A	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	93 %	Chassis Mount	4000 V	1	CE	24 V	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame
Bel Power Solutions MBC350-1T12L	Medical	350 W	200 W	15 A	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	92 %	Chassis Mount	4000 V	1	CE	12 V	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame
Bel Power Solutions MBC350-1T48L	Medical	350 W	200 W	4.17 A	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	94 %	Chassis Mount	4000 V	1	CE	48 V	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame
Bel Power Solutions MBC350-1T58L	Medical	350 W	200 W	3.45 A	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	94 %	Chassis Mount	4000 V	1	CE		1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	90 VAC	264 VAC
Bel Power Solutions MBC350-1T15L	Medical	350 W	180 W	12 A	Adjustable Output, PFC, Standby Output, Universal Input	92 %	Chassis Mount	4000 V	1	CE, cUL, NEMKO, UL	15 V	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	90 VAC	264 VAC
