HTSW-129-07-T-D

Active

Samtec Inc.

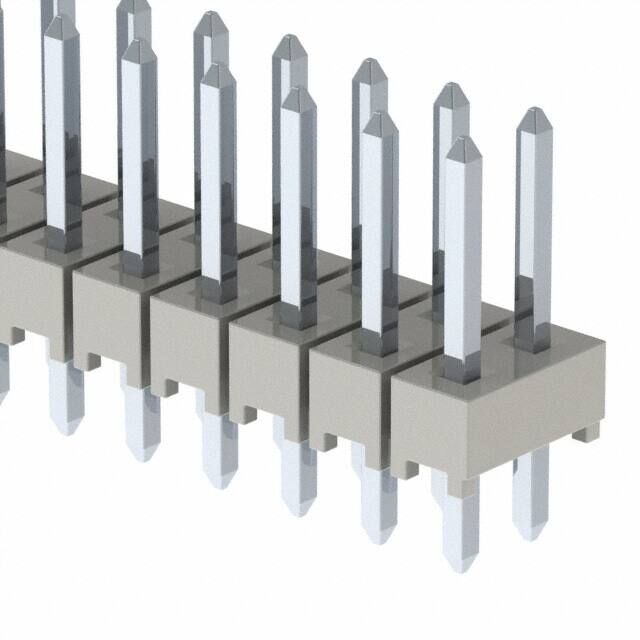

CONN HEADER VERT 58POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 58POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-129-07-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	58
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Contact Shape	Style	Number of Positions	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Connector Type	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Insulation Color	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Rows	Contact Finish - Mating
Samtec Inc. HTSW-129-15-T-D	Square	Board to Board Cable	58	Push-Pull	13.21 mm	0.52 in	Liquid Crystal Polymer (LCP)	Tin	105 ░C	-55 °C	Phosphor Bronze	Male Pin	Header	0.73 in	18.54 mm	2.54 mm	0.1 in	0.11 in	2.79 mm	UL94 V-0	Natural	Unshrouded	Solder	0.1 in	2.54 mm	Through Hole	All	0.1 in	2.54 mm	Varies by Wire Gauge	2
Samtec Inc. HTSW-129-08-G-S	Square	Board to Board Cable	29	Push-Pull			Liquid Crystal Polymer (LCP)	Gold	125 °C	-55 °C	Phosphor Bronze	Male Pin	Header							UL94 V-0	Natural	Unshrouded	Solder	0.1 in	2.54 mm	Through Hole					1	Gold
Samtec Inc. HTSW-129-07-T-D	Square	Board to Board Cable	58	Push-Pull			Liquid Crystal Polymer (LCP)	Tin	125 °C	-55 °C	Phosphor Bronze	Male Pin	Header							UL94 V-0	Natural	Unshrouded	Solder	0.1 in	2.54 mm	Through Hole					2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.43

General part information

Connector Header Through Hole 58 position 0.100" (2.54mm)

Technical documentation and resources
