9422-1113-000

Active

Radiall USA, Inc.

SMA F STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	9422-1113-000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Connector Style	Includes	Impedance	Mating Cycles	Frequency - Max [Max]	Dielectric Material	Connector Type	Mounting Feature	Center Contact Material	Body Finish	Center Contact Plating	Number of Ports	Contact Termination	Housing Color
Radiall USA, Inc. 9422-1113-000	Solder	-65 ░C	165 °C	Stainless Steel	SMA	1 Connector 1 Lockwasher 1 Nut	50 Ohms	500	18 GHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Bulkhead - Rear Side Nut	Beryllium Copper	Gold	Gold	1	Solder Cup	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

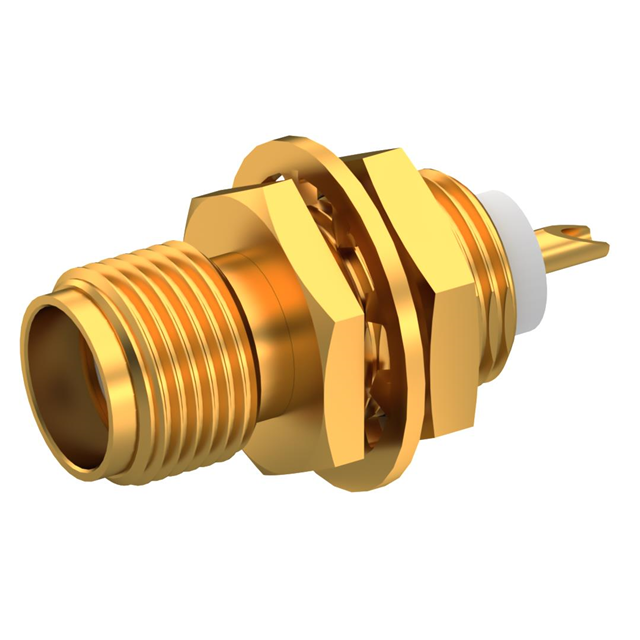

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
