EGG.1B.656.ZZM
ActiveLEMO

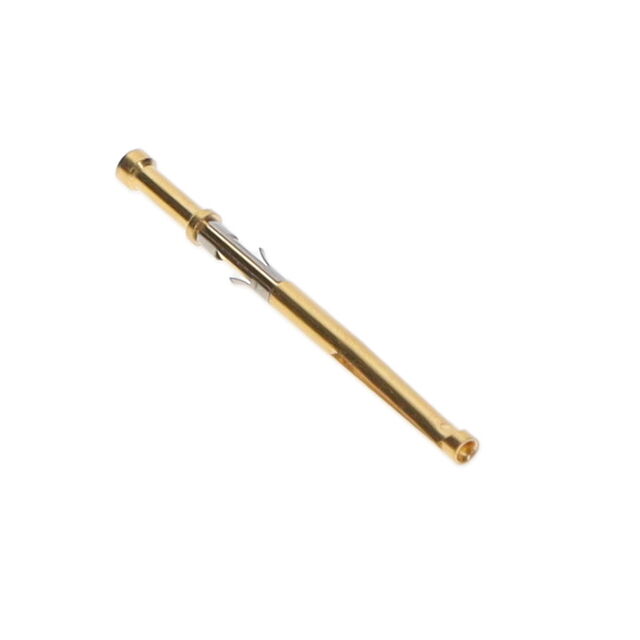

CONTACT SOCKET 28-32AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.1B.656.ZZM
ActiveLEMO
CONTACT SOCKET 28-32AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.1B.656.ZZM | EGG.1B Series |
|---|---|---|
| Color | - | Silver |
| Connector Type | - | Receptacle, Female Sockets, Female Sockets, Insert, Receptacle Housing |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 59 Áin |
| Contact Finish Thickness - Mating | - | 1.5 Ám |
| Contact Material | Bronze | Bronze, Copper |
| Contact Shape | - | Circular |
| Contact Size | 0.7 mm | 0.5 - 1.3 mm |
| Contact Termination | Crimp | Crimp |
| Contact Type | Socket | Socket, Crimp and Solder Cup, Crimp |
| Current Rating (Amps) | - | 1.5 - 15 A |
| Fastening Type | - | Push-Pull, Detent Lock |
| Features | - | Insert Only, Requires Shell |
| Housing Color | - | Silver |
| Ingress Protection | - | IP50 |
| Insert Material | - | Polyetheretherketone (PEEK) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount, Right Angle |
| Note | - | Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included |
| Number of Positions | - | 2 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 250 °C |
| Orientation | - | G |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 302 - 731 |
| Shielding | - | Shielded, Unshielded |
| Termination | - | Crimp, Solder |
| Type | Signal, Machined | Signal, Machined, For Female Sockets |
| Wire Gauge or Range - AWG [Max] | 32 AWG | 20 - 32 AWG |
| Wire Gauge or Range - AWG [Min] | 28 AWG | 18 - 28 AWG |
| Wire Gauge or Range - mm˛ | - | 0.14 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.34 mm˛ |
| Wire Gauge or Range - mm² [Max] | 0.09 mm² | 0.09 - 1 mm² |
| Wire Gauge or Range - mm² [Min] | 0.04 mm² | 0.04 - 0.5 mm² |
EGG.1B Series
CONTACT SOCKET 22-26AWG CRIMP
| Part | Contact Type | Type | Contact Termination | Contact Finish | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Size | Contact Material | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Primary Material | Shell Finish | Shielding | Insert Material | Shell Size - Insert | Ingress Protection | Connector Type | Mounting Feature | Orientation | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Shell Material | Termination | Material Flammability Rating | Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Note | Contact Shape | Features | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Housing Color | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.1B.661.ZZM | Socket | Machined, Signal | Crimp | Gold | 22 AWG | 26 AWG | 0.9 mm | Bronze | 0.14 mm˛ | 0.34 mm˛ | |||||||||||||||||||||||||||||
LEMO EGG.1B.303.CYM | Bronze | Metal | Chrome | Shielded | Polyetheretherketone (PEEK) | 303 | IP50 | Receptacle, Female Sockets | Bulkhead - Rear Side Nut | G | Gold | 59 Áin | 1.5 Ám | Push-Pull | Brass | Crimp | UL94 V-0 | Silver | 12 A | -55 °C | 250 °C | ||||||||||||||||||
LEMO EGG.1B.404.YL | Crimp and Solder Cup | For Female Sockets | 0.9 mm | Unshielded | 404 | IP50 | G | -55 °C | 250 °C | 4 | Note: Contacts Not Included; Insert Only, Requires Shell | Circular | |||||||||||||||||||||||||||
LEMO EGG.1B.655.ZZF | Socket | Machined, Signal | Crimp | Gold | 22 AWG | 26 AWG | 0.7 mm | Bronze | 0.14 mm˛ | 0.34 mm˛ | |||||||||||||||||||||||||||||
LEMO EGG.1B.731.ZJL | Bronze | Shielded | Polyetheretherketone (PEEK) | 731 | IP50 | Female Sockets, Insert | G | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | 12 A | -55 °C | 250 °C | Insert Only, Requires Shell | ||||||||||||||||||||||||
LEMO EGG.1B.660.ZZM | Socket | Machined, Signal | Crimp | Gold | 20 AWG | 24 AWG | 0.9 mm | Bronze | 0.25 mm² | 0.5 mm² | |||||||||||||||||||||||||||||
LEMO EGG.1B.314.ZLL | Bronze | Shielded | Polyetheretherketone (PEEK) | 314 | IP50 | Female Sockets, Insert | G | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | 2 A | -55 °C | 250 °C | 14 | Insert Only, Requires Shell | |||||||||||||||||||||||
LEMO EGG.1B.306.CYZ | Crimp | For Female Sockets | 0.7 mm | Chrome | Shielded | Polyetheretherketone (PEEK) | 306 | IP50 | Receptacle Housing | Bulkhead - Rear Side Nut | G | Detent Lock, Push-Pull | Brass | -55 °C | 250 °C | 6 | Contacts Not Included | Circular | Silver | ||||||||||||||||||||
LEMO EGG.1B.305.CYM | Bronze | Metal | Chrome | Shielded | Polyetheretherketone (PEEK) | 305 | IP50 | Receptacle, Female Sockets | Bulkhead - Rear Side Nut | G | Gold | 59 Áin | 1.5 Ám | Push-Pull | Brass | Crimp | UL94 V-0 | Silver | 9 A | -55 °C | 250 °C | ||||||||||||||||||
LEMO EGG.1B.308.CLL | Bronze | Metal | Chrome | Shielded | Polyetheretherketone (PEEK) | 308 | IP50 | Receptacle, Female Sockets | Bulkhead - Rear Side Nut | G | Gold | 59 Áin | 1.5 Ám | Push-Pull | Brass | UL94 V-0 | Silver | 5 A | -55 °C | 250 °C | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.17 | |
| 10 | $ 3.78 | |||
| 25 | $ 3.58 | |||
| 50 | $ 3.50 | |||
| 100 | $ 3.33 | |||
| 250 | $ 2.92 | |||
| 500 | $ 2.83 | |||
| 1000 | $ 2.42 | |||
| 2500 | $ 2.25 | |||
Description
General part information
EGG.1B Series
Socket Contact 28-32 AWG Size 0.7mm Crimp Gold
