51-371.F22D

Active

EAO

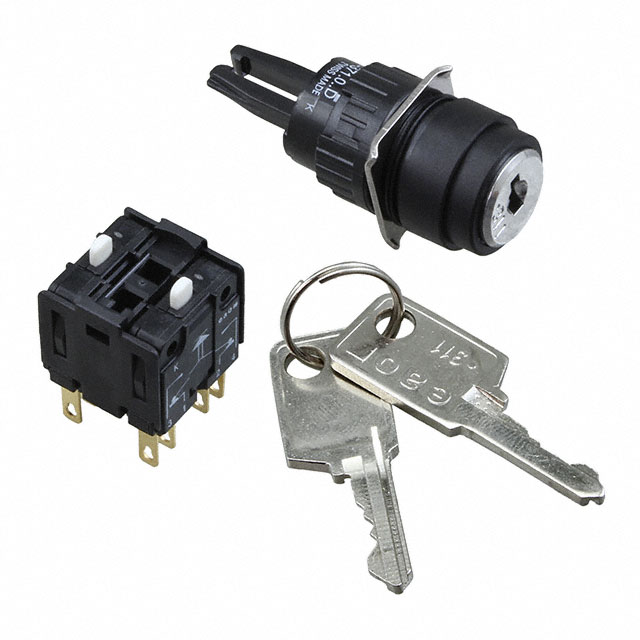

SWITCH KEYLOCK 3POS 4PST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 3POS 4PST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-371.F22D

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	4PST-2NO/2NC
Contact Finish	Gold
Contact Material	Silver (Ag)
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange [z]	42 mm
Features	IP65
Key Removable Positions	Center
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

SWITCH KEYLOCK 3POS 4PST 5A 250V

Part	Voltage Rating - AC	Actuator Type	Features	Termination Style	Termination Style	Termination Style	Switch Function	Angle of Throw	Contact Material	Contact Finish	Contact Timing	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Key Removable Positions	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange [z]
EAO 51-371.F22D	250 V	Flat Key	IP65	0.11 in	Quick Connect, Solder	2.8 mm	On-Off-On	90 °	Silver (Ag)	Gold	Not Specified	16.2 mm	5 A	Center	4PST-2NO/2NC	55 °C	-25 °C	42 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 3 Position 4PST-2NO/2NC 5A (AC) 250 VAC DC Panel Mount
