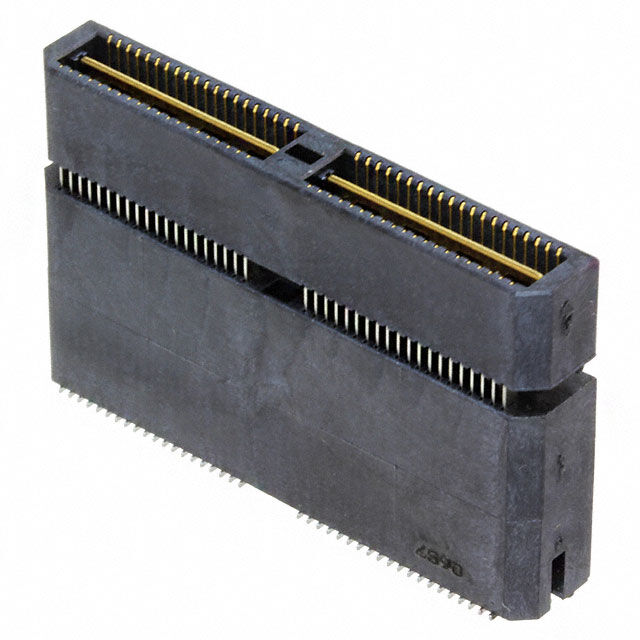

QTE-040-07-F-D-A

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQ Strip® High-Speed Ground Plane Header, 0.80mm Pitch Datasheet +1

QTE-040-07-F-D-A

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

DocumentsQ Strip® High-Speed Ground Plane Header, 0.80mm Pitch Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTE-040-07-F-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	0.954 in
Height Above Board	24.23 mm
Mated Stacking Heights	25 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QTE-040 Series

...

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Contact Finish	Mated Stacking Heights	Features
Samtec Inc. QTE-040-07-F-D-A	0.8 mm	0.031 in	0.954 in	24.23 mm	Surface Mount	2	3 Áin	0.076 Ám	Header Outer Shroud Contacts	80	Gold	25 mm
Samtec Inc. QTE-040-01-L-D-A	0.8 mm	0.031 in			Surface Mount	2	10 Áin	0.25 Ám	Header Outer Shroud Contacts	80	Gold	5 mm
Samtec Inc. QTE-040-03-L-D-LC-K-TR	0.8 mm	0.031 in	0.404 in	10.27 mm	Surface Mount	2	10 Áin	0.25 Ám	Header Outer Shroud Contacts	80	Gold	11 mm	Ground Bus (Plane) Locking Clip Pick and Place
Samtec Inc. QTE-040-04-C-D-A-K	0.8 mm	0.031 in	0.6 in	15.24 mm	Surface Mount	2	50 µin	1.27 µm	Header Outer Shroud Contacts	80	Gold	16 mm	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QTE-040-10-L-D-A	0.8 mm	0.031 in	0.566 in	14.37 mm	Surface Mount	2	10 Áin	0.25 Ám	Header Outer Shroud Contacts	80	Gold
Samtec Inc. QTE-040-01-L-D-K-TR	0.8 mm	0.031 in			Surface Mount	2	10 Áin	0.25 Ám	Header Outer Shroud Contacts	80	Gold	5 mm	Ground Bus (Plane) Pick and Place
Samtec Inc. QTE-040-01-L-D-A-GP-K	0.8 mm	0.031 in			Surface Mount	2	10 Áin	0.25 Ám	Header Outer Shroud Contacts	80	Gold	5 mm	Board Guide Ground Bus (Plane) Guide Post Pick and Place
Samtec Inc. QTE-040-01-C-D-LC	0.8 mm	0.031 in			Surface Mount	2	50 µin	1.27 µm	Header Outer Shroud Contacts	80	Gold	5 mm	Ground Bus (Plane) Locking Clip
Samtec Inc. QTE-040-03-F-D-TR	0.8 mm	0.031 in	0.404 in	10.27 mm	Surface Mount	2	3 Áin	0.076 Ám	Header Outer Shroud Contacts	80	Gold	11 mm	Ground Bus (Plane)
Samtec Inc. QTE-040-07-F-D	0.8 mm	0.031 in	0.954 in	24.23 mm	Surface Mount	2	3 Áin	0.076 Ám	Header Outer Shroud Contacts	80	Gold	25 mm	Ground Bus (Plane)
