Q-2T03A00010.5M
ActiveAmphenol Custom Cable

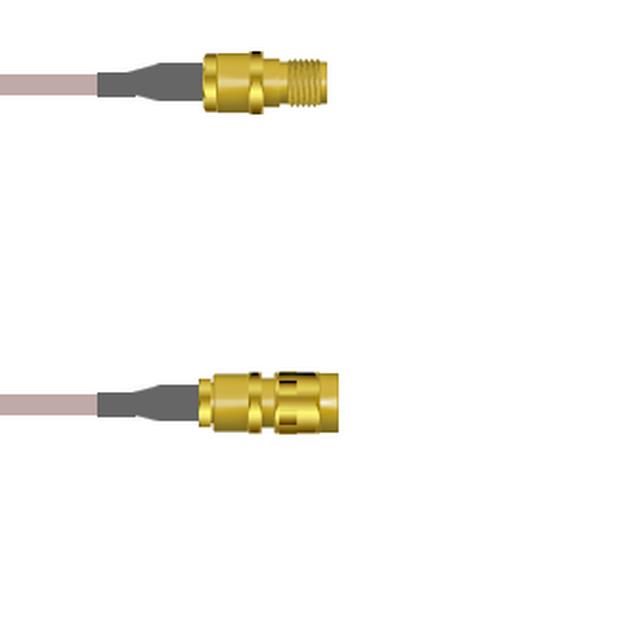

CBL ASSY SMA JACK TO PLUG 19.69"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2T03A00010.5M
ActiveAmphenol Custom Cable
CBL ASSY SMA JACK TO PLUG 19.69"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2T03A00010.5M |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 50 cm |
| Length | 19.69 " |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Q-2T03A0 Series
| Part | 2nd Contact Gender | Length [x] | Length [x] | Overall Impedance | Frequency - Max [Max] | Connector Impedance | Style | Cable Type | 2nd Connector Mounting Type | 1st Contact Gender | Color | Cable Impedance | 1st Connector | 1st Connector Mounting Type | Features | 2nd Connector | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Male | 9.843 " | 250 mm | 50 Ohms | 3 GHz | 50 Ohms | SMA to SMA | RG-178 | Free Hanging (In-Line) | Female | Copper | 50 Ohms | SMA Jack | Free Hanging (In-Line) | Shielded | SMA Plug | |||
Amphenol Custom Cable | Male | 50 Ohms | 3 GHz | 50 Ohms | SMA to SMA | RG-178 | Free Hanging (In-Line) | Female | Copper | 50 Ohms | SMA Jack | Free Hanging (In-Line) | Shielded | SMA Plug | 50 cm | 19.69 " | |||
Amphenol Custom Cable | Male | 50 Ohms | 3 GHz | 50 Ohms | SMA to SMA | RG-178 | Free Hanging (In-Line) | Female | Copper | 50 Ohms | SMA Jack | Free Hanging (In-Line) | Shielded | SMA Plug | 228.6 mm | 9 " | |||
Amphenol Custom Cable | Male | 50 Ohms | 3 GHz | 50 Ohms | SMA to SMA | RG-178 | Free Hanging (In-Line) | Female | Copper | 50 Ohms | SMA Jack | Free Hanging (In-Line) | Shielded | SMA Plug | 152.4 mm | 6 in | |||
Amphenol Custom Cable | Male | 50 Ohms | 3 GHz | 50 Ohms | SMA to SMA | RG-178 | Free Hanging (In-Line) | Female | Copper | 50 Ohms | SMA Jack | Free Hanging (In-Line) | Shielded | SMA Plug | 1 m | 39.4 in | 3.3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 87.73 | |
| 25 | $ 86.01 | |||
| 50 | $ 84.30 | |||
| 100 | $ 82.58 | |||
| 250 | $ 80.86 | |||
Description
General part information
Q-2T03A0 Series
Cable Assembly Coaxial SMA to SMA RG-178 19.69" (500.00mm)
Documents
Technical documentation and resources
No documents available
