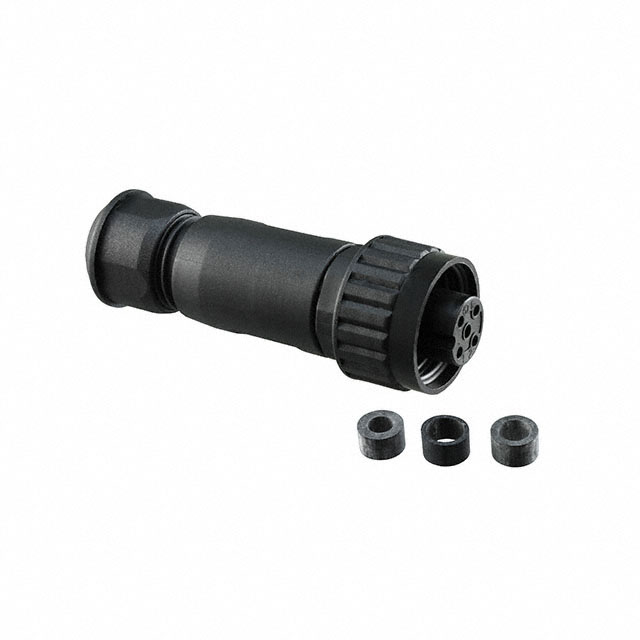

41-50000

Active

Amphenol CONEC

CONN PLUG FMALE 4P SILVER SCREW

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG FMALE 4P SILVER SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	41-50000

Applications	Industrial, Automotive
Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [diameter]	0.236 in, 0.472 in
Cable Opening [diameter]	5.99 mm
Cable Opening [diameter]	11.99 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Zinc
Current Rating (Amps)	16 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA6), Nylon 6, Glass Filled
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA6), Nylon 6, Glass Filled
Shell Size - Insert	RD24-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	400 V

Part	Mounting Type	Contact Finish - Mating	Contact Material	Shell Material	Shell Size - Insert	Ingress Protection	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Features	Orientation	Current Rating (Amps)	Shielding	Color	Insert Material	Applications	Material Flammability Rating	Voltage Rating	Backshell Material, Plating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Termination
Amphenol CONEC 41-50000	Free Hanging (In-Line)	Silver	Copper Zinc	Polyamide (PA6) Nylon 6 Glass Filled	RD24-4	IP67 - Dust Tight Waterproof	Female Sockets Plug	0.236 in 0.472 in	5.99 mm	11.99 mm	Backshell Coupling Nut	Keyed	16 A	Unshielded	Black	Polyamide (PA6) Nylon 6 Glass Filled	Automotive Industrial	UL94	400 V	Glass Filled Nylon 6 Polyamide (PA6)	4	85 °C	-40 °C	Plastic	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 20.18

General part information

4 (3 + PE) Position Circular Connector Plug, Female Sockets Screw
