345-024-500-558
ActiveEDAC Inc.

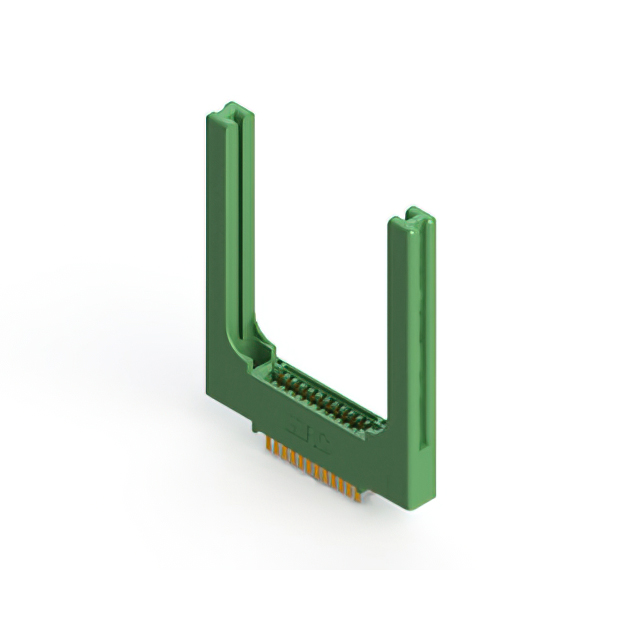

CARD EDGE CONNECTOR, 24 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, GUIDE SET, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-024-500-558
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 24 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, GUIDE SET, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-024-500-558 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
345-024 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Material | Number of Rows | Read Out | Gender | Contact Finish | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Card Type | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 24 | Copper Alloy | 1 | Single | Female | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Single Edge | |||
EDAC Inc. | 12 | Copper Alloy | 2 | Dual | Female | Gold | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Dual Edge | |||||
EDAC Inc. | 12 | Copper Alloy | 2 | Dual | Female | Gold | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Dual Edge | Card Guides | ||||
EDAC Inc. | 24 | Copper Alloy | 1 | Single | Female | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Single Edge | |||
EDAC Inc. | 24 | Copper Alloy | 1 | Single | Female | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | M3 Threaded Insert Top Mount Opening | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Single Edge | |||||
EDAC Inc. | 24 | Copper Alloy | 1 | Single | Female | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Single Edge | |||
EDAC Inc. | 24 | Copper Alloy | 1 | Single | Female | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Side Mount Opening Unthreaded | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Single Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | 12 | Copper Alloy | 2 | Dual | Female | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Dual Edge | Card Extender | ||
EDAC Inc. | 12 | Copper Alloy | 2 | Dual | Female | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Dual Edge | |||
EDAC Inc. | 12 | Copper Alloy | 2 | Dual | Female | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Green | 24 | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.99 | |
Description
General part information
345-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
