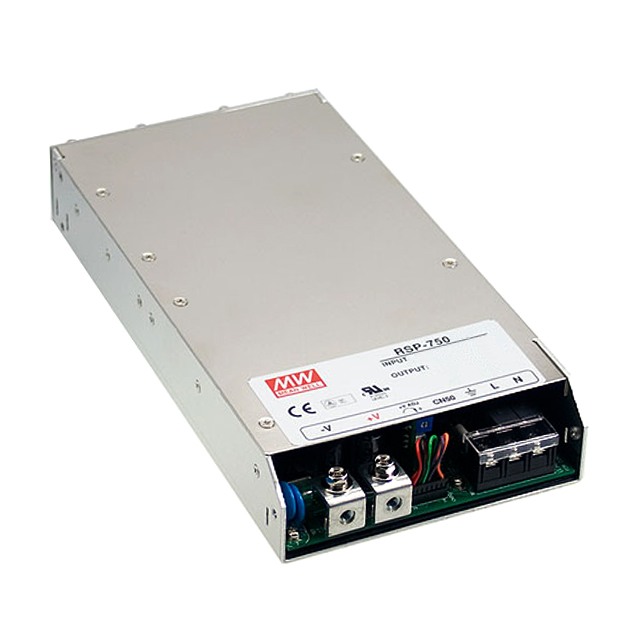

RSP-750-27

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27V 751W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27V 751W

Technical Specifications

Parameters and characteristics for this part

Specification	RSP-750-27

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	27.8 A
Efficiency	90.5 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	751 W
Size / Dimension [x]	9.84 "
Size / Dimension [x]	250 mm
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	27 V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Type	Voltage - Output 1	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Isolation	Current - Output 1	Approval Agency	Mounting Type	Number of Outputs	Applications	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]
MEAN WELL USA Inc. RSP-750-12	127 mm	5 "	41 mm	1.61 "	9.84 "	250 mm	Enclosed	12 V	87 %	70 °C	-30 °C	Adjustable Output PFC Remote On/Off Universal Input	3000 V	62.5 A	CB CE cURus TUV	Chassis Mount	1	ITE (Commercial)	750 W	90 VAC 127 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RSP-750-48	127 mm	5 "	41 mm	1.61 "	9.84 "	250 mm	Enclosed	48 V	92 %	70 °C	-30 °C	Adjustable Output PFC Remote On/Off Universal Input	3000 V	15.7 A	CB CE cURus TUV	Chassis Mount	1	ITE (Commercial)	754 W	90 VAC 127 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RSP-750-27	127 mm	5 "	41 mm	1.61 "	9.84 "	250 mm	Enclosed	27 V	90.5 %	70 °C	-30 °C	Adjustable Output PFC Remote On/Off Universal Input	3000 V	27.8 A	CB CE cURus TUV	Chassis Mount	1	ITE (Commercial)	751 W	90 VAC 127 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RSP-750-24	127 mm	5 "	41 mm	1.61 "	9.84 "	250 mm	Enclosed	24 V	90.5 %	70 °C	-30 °C	Adjustable Output PFC Remote On/Off Universal Input	3000 V	31.3 A	CB CE cURus TUV	Chassis Mount	1	ITE (Commercial)	751 W	90 VAC 127 VDC	264 VAC 370 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 27V 90 ~ 264 VAC, 127 ~ 370 VDC Input
