R161277000

Active

Radiall USA, Inc.

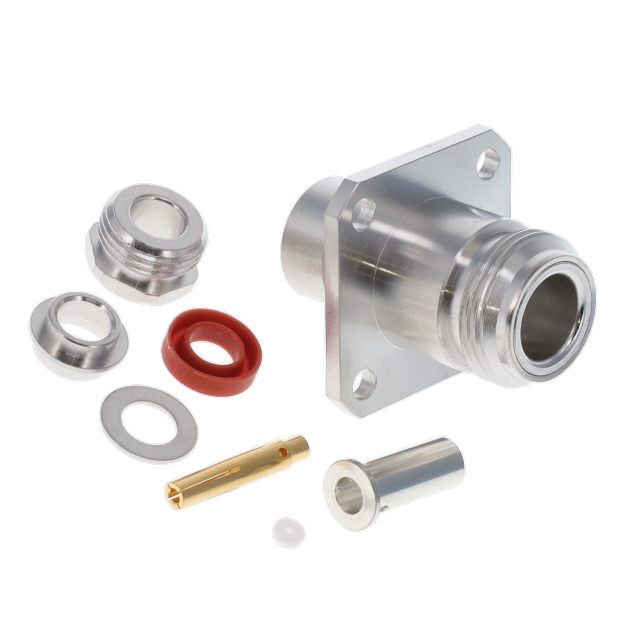

N / STRAIGHT SQUARE FLANGE JACK

Deep-Dive with AI

Search across all available documentation for this part.

R161277000

Active

Radiall USA, Inc.

N / STRAIGHT SQUARE FLANGE JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161277000

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	335 V

R16127 Series

Part	Dielectric Material	Contact Termination	Voltage Rating	Shield Termination	Center Contact Plating	Insertion Loss	Center Contact Material	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Frequency - Max [Max]	Connector Style	Body Finish	Connector Type	Mating Cycles	Housing Color	Impedance	Number of Ports	Ingress Protection	Cable Group	Cable Group
Radiall USA, Inc. R161277300W	Polytetrafluoroethylene (PTFE)	Solder	335 V	Solder	Gold	0.15 dB	Beryllium Copper	Brass	105 ░C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1
Radiall USA, Inc. R161277000W	Polytetrafluoroethylene (PTFE)	Solder	335 V	Clamp	Gold	0.15 dB	Beryllium Copper	Brass	105 ░C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161272000W	Polytetrafluoroethylene (PTFE)	Solder	1400 V	Clamp	Gold	0.15 dB	Beryllium Copper	Brass	155 °C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1	IP67 - Dust Tight Waterproof	144 165 213 214 216 225 393 RG-11
Radiall USA, Inc. R161278000W	Polytetrafluoroethylene (PTFE)	Solder	1400 V	Clamp	Gold	0.15 dB	Beryllium Copper	Brass	105 ░C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1	IP67 - Dust Tight Waterproof	RG-401	0.25 in
Radiall USA, Inc. R161270000	Polytetrafluoroethylene (PTFE)	Solder	1400 V	Clamp	Gold	0.15 dB	Beryllium Copper	Brass	155 °C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1	IP67 - Dust Tight Waterproof	144 165 213 214 216 225 393 RG-11
Radiall USA, Inc. R161278000	Polytetrafluoroethylene (PTFE)	Solder	1400 V	Clamp	Gold	0.15 dB	Beryllium Copper	Brass	105 ░C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1	IP67 - Dust Tight Waterproof	RG-401	0.25 in
Radiall USA, Inc. R161277000	Polytetrafluoroethylene (PTFE)	Solder	335 V	Clamp	Gold	0.15 dB	Beryllium Copper	Brass	105 ░C	-55 °C	Flange	11 GHz	N Type	White Bronze	Female Socket Jack	500	Silver	50 Ohms	1	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 47.29
		10	$ 36.61
		25	$ 33.22
		50	$ 30.93
		100	$ 28.86
		250	$ 26.42

Description

General part information

R16127 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available
