R143273700

Active

Radiall USA, Inc.

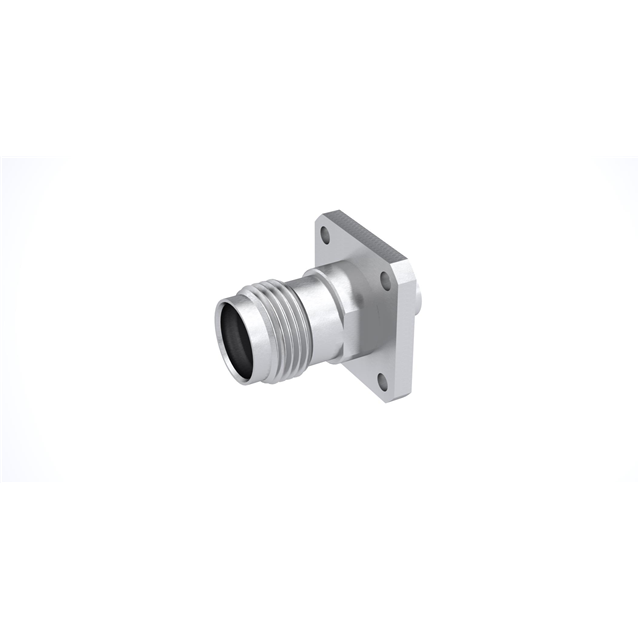

TNC 18 / STRAIGHT SQUARE FLANGE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC 18 / STRAIGHT SQUARE FLANGE

Technical Specifications

Parameters and characteristics for this part

Specification	R143273700

Body Material	Stainless Steel
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Shield Termination	Connector Type	Mounting Feature	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Material	Number of Ports	Housing Color	Contact Termination	Connector Style	Dielectric Material	Voltage Rating	Cable Group	Mating Cycles	Impedance	Center Contact Plating	Cable Group
Radiall USA, Inc. R143272700	Solder	Female Socket Jack	Flange	18 GHz	-65 ░C	165 °C	Beryllium Copper	Stainless Steel	1	Silver	Solder	TNC	Polytetrafluoroethylene (PTFE)	335 V	RG-405 (.085" Semi Rigid)	500	50 Ohms	Gold
Radiall USA, Inc. R143273700	Solder	Female Socket Jack	Flange	18 GHz	-65 ░C	105 ░C	Bronze	Stainless Steel	1	Silver	Solder	TNC	Polytetrafluoroethylene (PTFE)	500 V		500	50 Ohms	Gold
Radiall USA, Inc. R143274700	Solder	Female Socket Jack	Flange	18 GHz	-65 ░C	105 ░C	Bronze	Stainless Steel	1	Silver	Solder	TNC	Polytetrafluoroethylene (PTFE)	500 V	RG-401	500	50 Ohms	Gold	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 136.53

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
