357-017-453-108

Active

EDAC Inc.

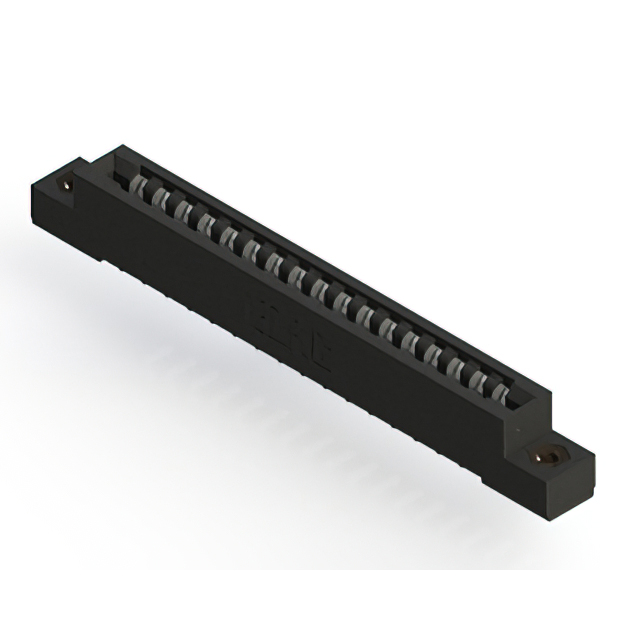

CARD EDGE CONNECTOR, 17 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-017-453-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, 17 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-017-453-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

357-017 Series

...

Part	Contact Type	Contact Material	Number of Rows	Termination Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Flange Feature	Material - Insulation	Gender	Color	Termination	Read Out	Pitch [x]	Pitch [x]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-017-557-107	Semi Bellows	Copper Alloy	2	1	Gold	-40 °C	105 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	34	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Female	Black	Wire Wrap	Dual	0.156 in	3.96 mm
EDAC Inc. 357-017-457-158	Semi Bellows	Copper Alloy	2	1	Tin	-40 °C	105 ░C			Non Specified - Dual Edge	34	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Black	Solder	Dual	0.156 in	3.96 mm	Card Guides
EDAC Inc. 357-017-459-103	Semi Bellows	Copper Alloy	1	1	Tin	-40 °C	105 ░C			Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Floating Bobbin Flush Mount	Polyester Thermoplastic	Female	Black	Solder	Single	0.156 in	3.96 mm		0.116 in	2.95 mm
EDAC Inc. 357-017-545-108	Semi Bellows	Copper Alloy	1	1	Gold	-40 °C	105 ░C	10 Áin	0.25 Ám	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Black	Wire Wrap	Single	0.156 in	3.96 mm
EDAC Inc. 357-017-527-108	Semi Bellows	Copper Alloy	1	1	Gold	-40 °C	105 ░C	10 Áin	0.25 Ám	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Black	Solder	Single	0.156 in	3.96 mm
EDAC Inc. 357-017-531-158	Semi Bellows	Copper Alloy	1	1	Gold	-40 °C	105 ░C	10 Áin	0.25 Ám	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Black	Solder	Single	0.156 in	3.96 mm	Card Guides
EDAC Inc. 357-017-527-112	Semi Bellows	Copper Alloy	1	1	Gold	-40 °C	105 ░C	10 Áin	0.25 Ám	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Flush Mount Side Opening Unthreaded	Polyester Thermoplastic	Female	Black	Solder	Single	0.156 in	3.96 mm		0.128 "	3.25 mm
EDAC Inc. 357-017-453-108	Semi Bellows	Copper Alloy	2	1	Tin	-40 °C	105 ░C			Non Specified - Dual Edge	34	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Black	Solder	Dual	0.156 in	3.96 mm
EDAC Inc. 357-017-547-103	Semi Bellows	Copper Alloy	1	1	Gold	-40 °C	105 ░C	10 Áin	0.25 Ám	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Floating Bobbin Flush Mount	Polyester Thermoplastic	Female	Black	Wire Wrap	Single	0.156 in	3.96 mm		0.116 in	2.95 mm
EDAC Inc. 357-017-459-102	Semi Bellows	Copper Alloy	1	1	Tin	-40 °C	105 ░C			Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Female	Black	Solder	Single	0.156 in	3.96 mm		0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 24.67

Description

General part information

357-017 Series

34 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
