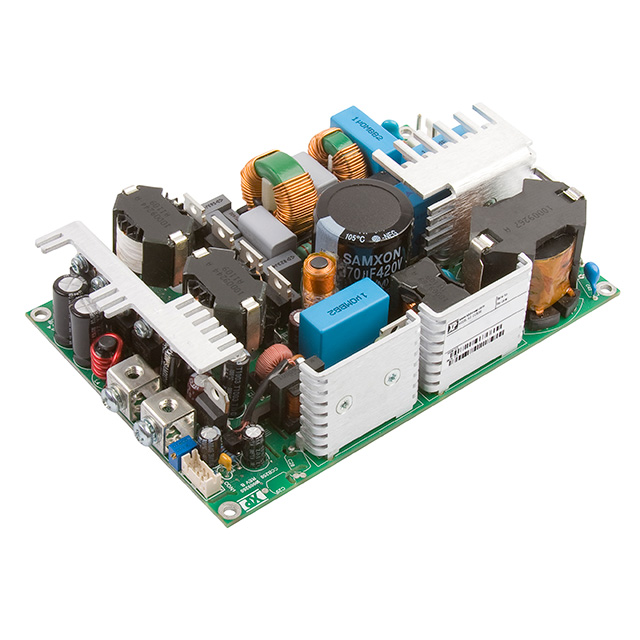

CCB250PS12
ActiveXP POWER
AC/DC CONVERTER 12V 250W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCB250PS12
ActiveXP POWER
AC/DC CONVERTER 12V 250W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCB250PS12 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | UL, TUV, CB |
| Current - Output 1 | 20.8 A |
| Efficiency | 95 % |
| Features | Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 250 W |
| Size / Dimension [x] | 152.4 mm |
| Size / Dimension [x] | 6 in |
| Size / Dimension [y] | 4 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 275 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 322.60 | |
| 5 | $ 312.92 | |||
| 10 | $ 303.24 | |||
| 25 | $ 290.34 | |||
| 100 | $ 270.98 | |||
Description
General part information
CCB250 Series
Open Frame AC DC Converters 1 Output 12V 80 ~ 275 VAC Input
