AMI-M31NC-1-20-D

Active

Altran Magnetics, LLC

LINE FILTER 20A CHASSIS MOUNT

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

LINE FILTER 20A CHASSIS MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

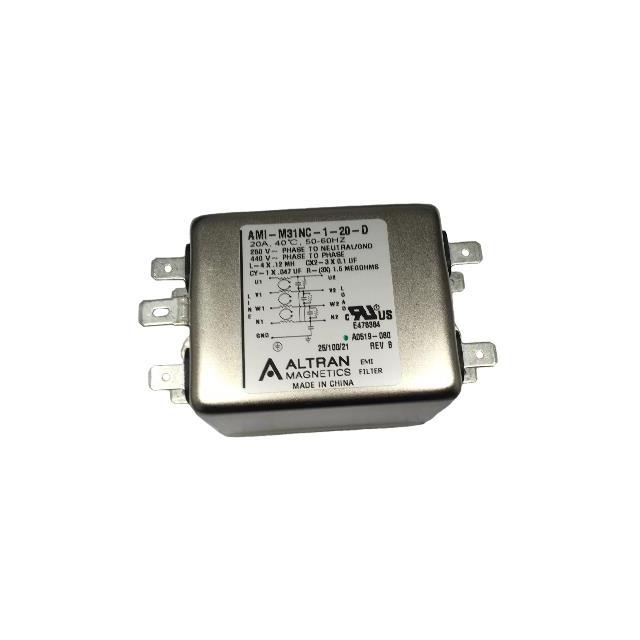

Three Phase (Wye) EMC/EMI Line Filter 20 A 50/60Hz Single Stage Quick Connect

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	AMI-M31NC-1-20-D	AMI-M31 Series

Applications	General Purpose	General Purpose
Configuration	Single Stage	Single Stage
Current	20 A	3 - 110 A
Filter Type	Three Phase (Wye)	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	1 - 670 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Termination Style	Quick Connect	Quick Connect, Threaded Post (1/4-20), Threaded Post (8-32)
Voltage - Rated AC (Phase to Ground/Neutral)	-	250 V
Voltage - Rated AC (Phase to Phase)	-	440 - 480 V

LINE FILTER 20A CHASSIS MOUNT

Part	Termination Style	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Configuration	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Inductance	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC (Phase to Phase)
Altran Magnetics, LLC AMI-M31NC-1-20-D	Quick Connect	Three Phase (Wye)	-10 °C	40 °C	Chassis Mount	Single Stage	20 A	60 Hz	50 Hz	General Purpose
Altran Magnetics, LLC AMI-M31NC-1-3-D	Quick Connect	Three Phase (Wye)	-10 °C	40 °C	Chassis Mount	Single Stage	3 A	60 Hz	50 Hz	General Purpose	1 mH
Altran Magnetics, LLC AMI-M31NA-6A-50-D	Threaded Post (1/4-20)	Three Phase (Wye)	-10 °C	40 °C	Chassis Mount	Single Stage	50 A	60 Hz	50 Hz	General Purpose	670 µH	250 V	440 V
Altran Magnetics, LLC AMI-M31NB-10-110-E		Three Phase (Wye)	-10 °C	40 °C	Chassis Mount	Single Stage	110 A	60 Hz	50 Hz	General Purpose			480 V
Altran Magnetics, LLC AMI-M31NA-6A-16-D	Threaded Post (8-32)	Three Phase (Wye)	-10 °C	40 °C	Chassis Mount	Single Stage	16 A	60 Hz	50 Hz	General Purpose	1.2 mH	250 V	440 V
