MCP73831EV
ActiveMicrochip Technology
BOARD DEMO FOR MCP73831
Deep-Dive with AI
Search across all available documentation for this part.
MCP73831EV
ActiveMicrochip Technology
BOARD DEMO FOR MCP73831
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP73831EV | MCP73831 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 - 4.5 V |
| Charge Current - Max | - | 500 mA |
| Current - Charging | - | Constant - Programmable |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-VFDFN Exposed Pad, SOT-753, SC-74A |
| Programmable Features | - | Current |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-DFN (2x3), SOT-23-5 |
| Type | Power Management | Power Management |
| Utilized IC / Part | MCP73831 | MCP73831 |
| Voltage - Supply (Max) | - | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 70.94 | |
MCP73831 Series
1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, PLASTIC, MO-229VCED-2, DFN-8
| Part | Battery Pack Voltage | Package / Case | Mounting Type | Battery Chemistry | Programmable Features | Current - Charging | Supplier Device Package | Charge Current - Max [Max] | Number of Cells | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Max) [Max] | Function | Type | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP73831T-5ACI/MC | 4.5 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-3ACI/MC | 4.35 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831-5ACI/MC | 4.5 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831-2ACI/MC | 4.2 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-3ACI/OT | 4.35 V | SC-74A, SOT-753 | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | SOT-23-5 | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831-3ACI/MC | 4.35 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-2DCI/OT | 4.2 V | SC-74A, SOT-753 | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | SOT-23-5 | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831-2ATI/MC | 4.2 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-2ATI/OT | 4.2 V | SC-74A, SOT-753 | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | SOT-23-5 | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-2ATI/MC | 4.2 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-2ACI/MC | 4.2 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-2DCI/MC | 4.2 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-4ADI/MC | 4.4 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-4ADI/OT | 4.4 V | SC-74A, SOT-753 | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | SOT-23-5 | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831-2DCI/MC | 4.2 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831T-5ACI/OT | 4.5 V | SC-74A, SOT-753 | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | SOT-23-5 | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831-4ADI/MC | 4.4 V | 8-VFDFN Exposed Pad | Surface Mount | Lithium Ion/Polymer | Current | Constant - Programmable | 8-DFN (2x3) | 500 mA | 1 | 85 °C | -40 °C | 6 V | ||||
Microchip Technology MCP73831EV | Battery Charger | Power Management | Board(s) | MCP73831 |
Description
General part information
MCP73831 Series

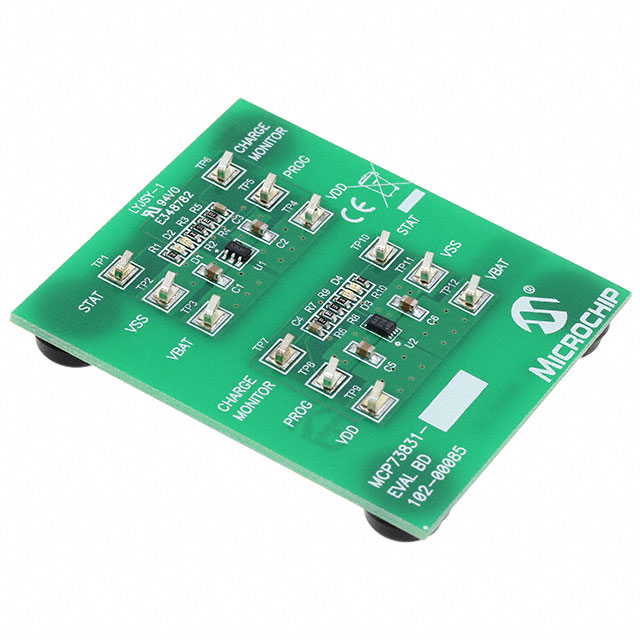

MCP73831 Battery Charger Power Management Evaluation Board
Documents
Technical documentation and resources
