1307A 0081000

Active

Belden Inc.

2 #16 PE FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #16 PE FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	1307A 0081000

Cable Type	Speaker
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Features	Direct Burial
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.33 mm
Jacket (Insulation) Thickness	0.013 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Home, Audio-Video
Voltage	300 V
Wire Gauge	16 AWG

Part	Number of Conductors	Conductor Insulation	Cable Type	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Usage	Voltage	Length	Length
Belden Inc. 1307A 010U500	2	Polyolefin (PO)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Black	500 '	152.4 m	5.33 mm	0.21 in
Belden Inc. 1307A 1SLU500	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65		500 '	152.4 m	5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V
Belden Inc. 1307A N3UU500	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Green	500 '	152.4 m	5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V
Belden Inc. 1307A 0101000	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Black			5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V	1000 ft	304.8 m
Belden Inc. 1307A 0081000	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Gray			5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.69

General part information

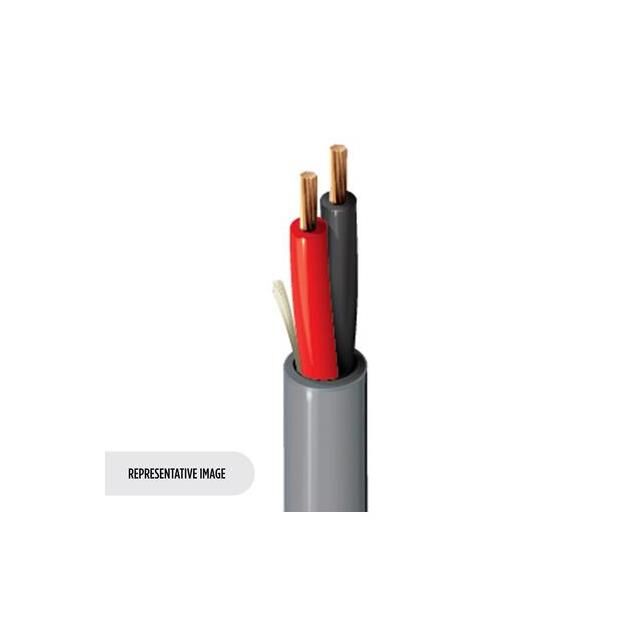

2 Conductor Speaker Cable Gray 16 AWG 1000.0' (304.8m)
