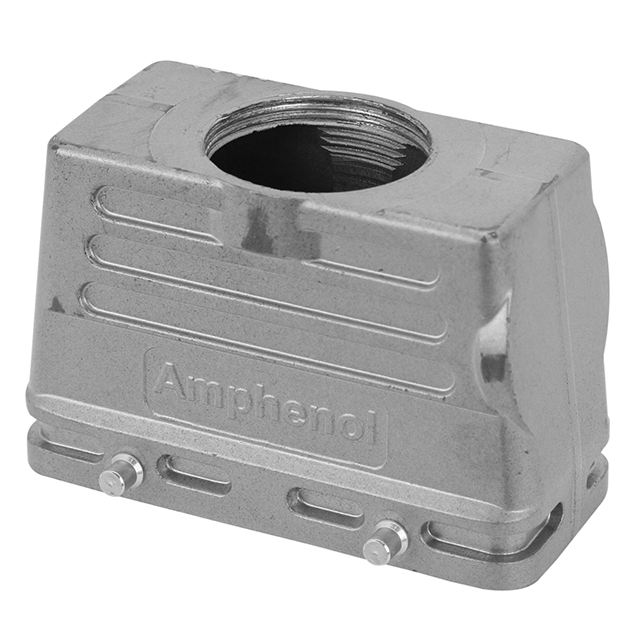

C14621R0166001

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE16 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE16 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C14621R0166001

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Top Entry
Thread Size	M32

Part	Style	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Connector Type	Size	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Ingress Protection	Features
Amphenol Tuchel Industrial C14621R0166068	Top Entry	M32	100 °C	-40 °C	Aluminum Die Cast	Hood	E16	Locking Clip (1) on Base Bottom	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C14621R0165504	Side Entry	M20	100 °C	-40 °C	Aluminum Alloy Die Cast	Hood	A16	Locking Clip (1) on Base Bottom	3.11 in	1.161 "	29.5 mm	79 mm	58 mm	2.283 in	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C14621R0168521	Bottom Entry	M25	100 °C	-40 °C	Aluminum Alloy Die Cast	Hood - Coupling	E16	Locking Clip (2) on Hood Top	3.681 "	1.693 in	43 mm	93.5 mm	62 mm	2.441 "	IP65 - Dust Tight Water Resistant	Cable to Cable
Amphenol Tuchel Industrial C14621R0166001	Top Entry	M32	100 °C	-40 °C	Aluminum Alloy Die Cast	Hood	E16	Locking Clip (2) on Base Bottom	3.681 "	1.693 in	43 mm	93.5 mm	62 mm	2.441 "	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C14621R0165061	Side Entry	M32	100 °C	-40 °C	Aluminum Alloy Die Cast	Hood	E16	Locking Clip (1) on Base Bottom	3.681 "	1.693 in	43 mm	93.5 mm	62 mm	2.441 "	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 E16 IP65 - Dust Tight, Water Resistant
