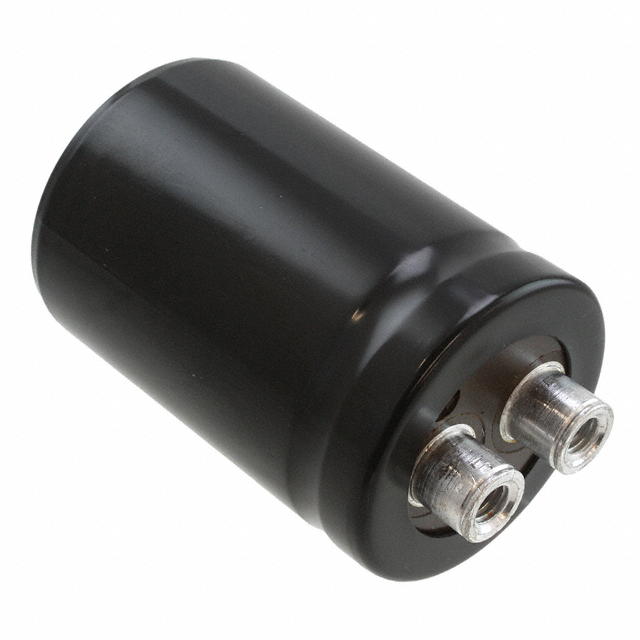

Specification	ALS30A221DA400

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	570 mOhm
Height - Seated (Max)	2.126 in
Impedance	387 mOhms
Lead Spacing	0.504 in
Lifetime	11000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	4.4 A, 2.1 A
Size / Dimension Diameter	1.417 in
Tolerance	20 %
Voltage - Rated	400 V

A331FB Series

Part	ESR (Equivalent Series Resistance)	Operating Temperature (Min)	Operating Temperature (Max)	Impedance	Lifetime	Tolerance	Applications	Polarization	Capacitance	Ripple Current	Package / Case	Height - Seated (Max)	Mounting Type	Size / Dimension Diameter	Voltage - Rated	Lead Spacing
KEMET ALS30A221DA400	570 mOhm	-40 °C	85 °C	387 mOhms	11000 Hrs	20 %	General Purpose	Polar	220 µF	2.1 A 4.4 A	Can - Screw Terminals Radial	2.126 in	Chassis Mount	1.417 in	400 V	0.504 in
