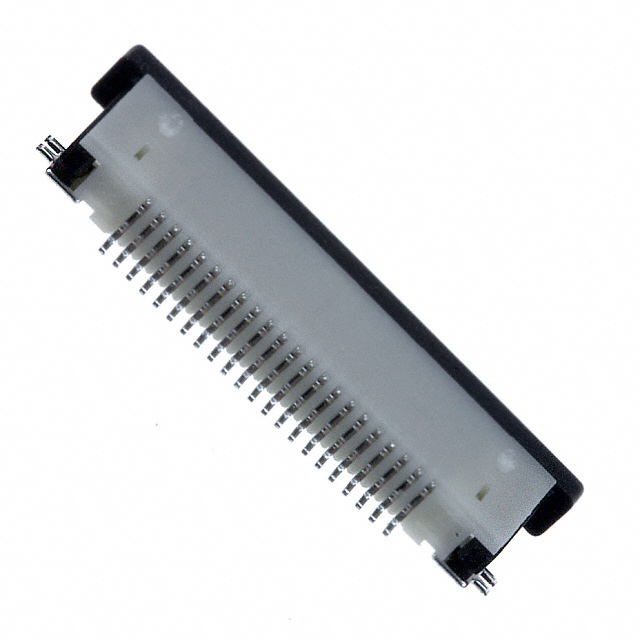

22FLZ-RSM2-TB(LF)(SN)(P)

Active

JST Sales America Inc.

CONN FFC BOTTOM 22POS 0.5MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC BOTTOM 22POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	22FLZ-RSM2-TB(LF)(SN)(P)

Actuator Color	Black
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Natural
Housing Material	Polyamide (PA6T), Nylon 6T
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	22 positions
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Flat Flex Type	Cable End Type	Actuator Material	Features	Locking Feature	Housing Color	Housing Material	Connector/Contact Type	Mounting Type	Contact Finish	Contact Material	Height Above Board	Height Above Board	Material Flammability Rating	Termination	Actuator Color	Number of Positions	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch [x]	Pitch [x]	Voltage Rating
JST Sales America Inc. 22FLZ-RSM2-TB(LF)(SN)(P)	FFC FPC	Tapered	Polyamide (PA6T) Nylon 6T	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	Natural	Polyamide (PA6T) Nylon 6T	Contacts Bottom	Surface Mount Right Angle	Tin	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	Solder	Black	22 positions	0.3 mm	-25 °C	85 °C	0.5 A	0.5 mm	0.02 in	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
